I-N-A 滚针与保持架组件轴承 K40X47X20-A-2-4 = KT404720C3

电询库存情况

产品描述

I-N-A 滚针与保持架组件轴承 K40X47X20-A-2-4 = KT404720C3



品牌 K40X47X20-A-2-4 主要下游平台 ebay
主要销售地区 北美 轴承类型 向心滚针和保持架组件滚针轴承
是否跨境出口专供货源 否 容许扭矩 K40X47X20-A-2-4
系列 KT系列 轴承材质 轴承钢
适用行业 建筑业,轨道交通设备制造,3C电子制造,汽车制造,通用设备制造,新能源电池制造

包装信息





商品件重尺




型号 重量(g)
K40X47X20-A-2-4 45


商品详情

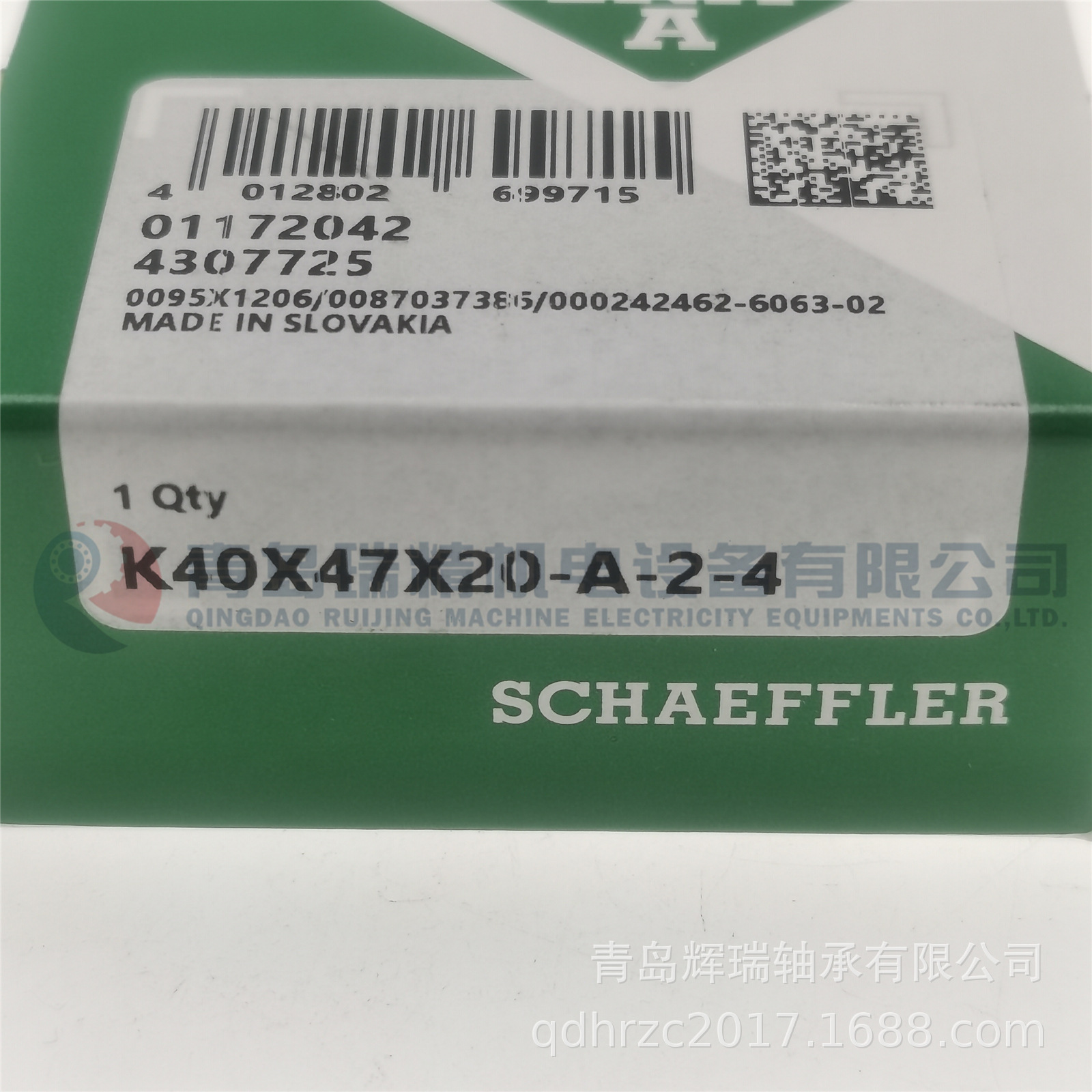

INA K40X47X20-A-2-4.jpg

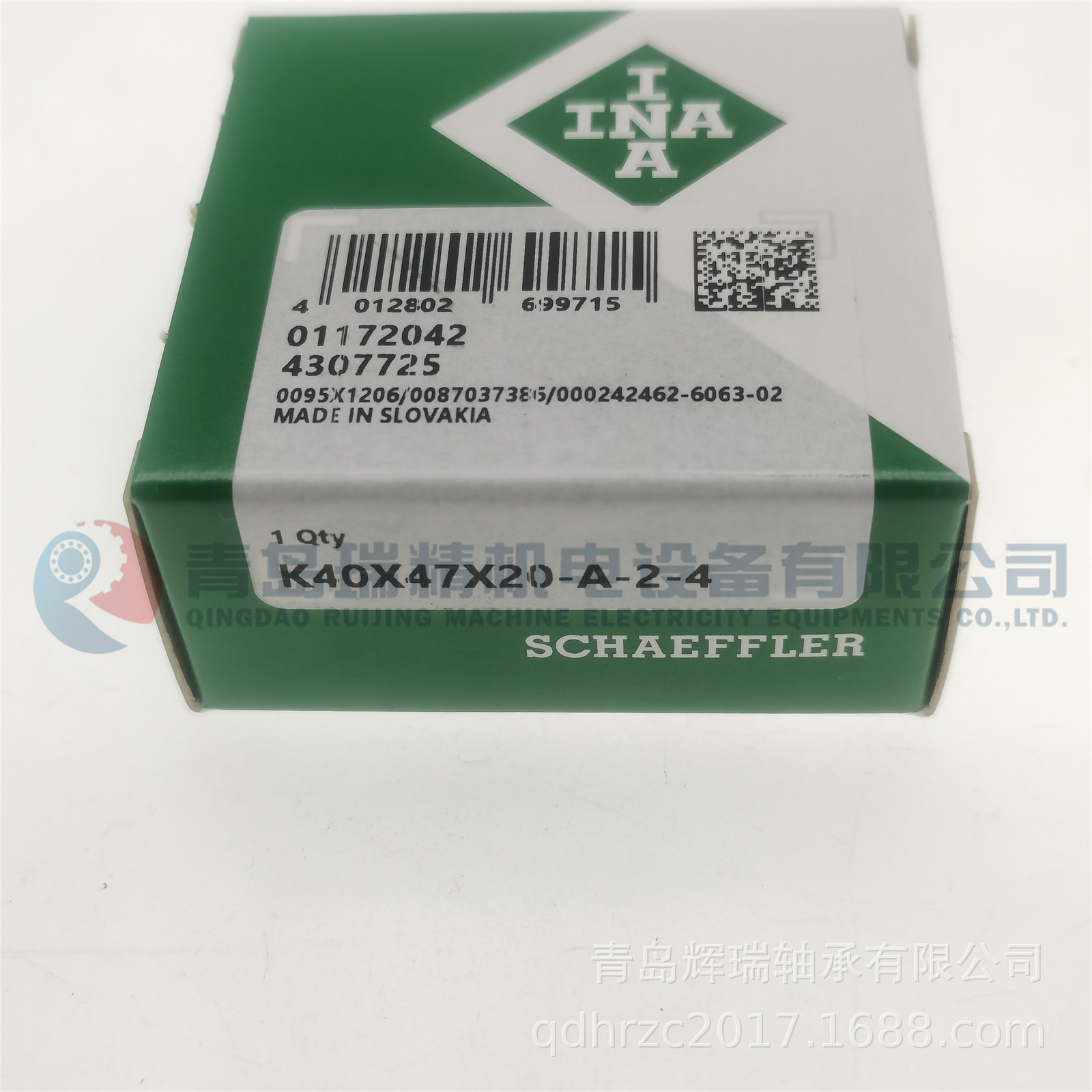

INA K40X47X20-A-2-4 (2).jpg

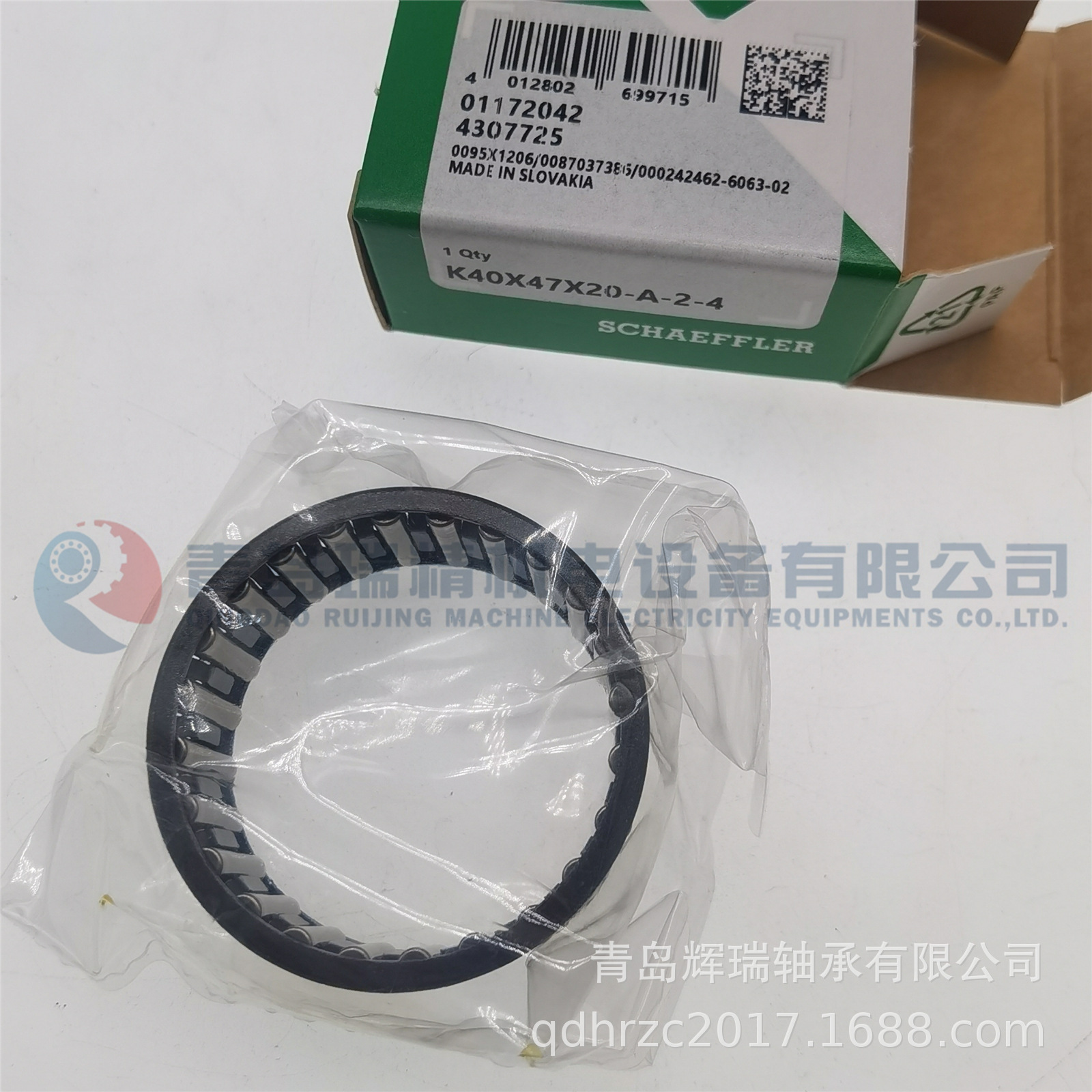

INA K40X47X20-A-2-4 (3).jpg

INA K40X47X20-A-2-4 (4).jpg

INA K40X47X20-A-2-4 (5).jpg


轴径
Shaft
Diameter		 轴承型号
Bearing Designation		 重量
Mass
近似
Approx		 外形尺寸
BoundaryDimensions
现型号
CurrentCode		 原型号
OriginalCode		 Fw D C
mm g mm
3 K3X5X7TN   0.3 3 5 7
K3X5X9TN   0.4 3 5 9
K3X6X7TN   0.4 3 6 7
4 K4X7X7TN   0.5 4 7 7
K4X7X10TN   0.7 4 7 10
5 K5X8X8TN 29241/5 0.7 5 8 8
K5X8X10TN 39241/5 0.9 5 8 10
6 K6X9X8TN 29241/6 0.8 6 9 8
K6X9X10TN 39241/6 1 6 9 10
K6X10X13TN 19241/6 1.3 6 10 13
7 K7X10X8TN 29241/7 0.9 7 10 8
K7X10X10TN 39241/7 1.1 7 10 10
8 K8X11X8TN 29241/8 1.1 8 11 8
K8X11X10TN 39241/8 1.7 8 11 10
K8X11X13TN 49241/8 1.8 8 11 13
K8X12X10TN 29242/8 1.3 8 12 10
9 K9X12X10TN 39241/9 1.5 9 12 10
K9X12X13TN 19241/9 1.9 9 12 13
10 K10X13X10TN 39241/10 1.6 10 13 10
K10X13X13TN 39241/10 2.1 10 13 13
K10X13X16TN   2.2 10 13 16
K10X14X10TN 29242/10 2.9 10 14 10
K10X14X13TN 3922/10 4.3 10 14 13
K10X16X12TN 19244/10 3.7 10 16 12
12 K12X15X9TN   2.7 12 15 9
K12X15X10TN 39241/12 1.9 12 15 10
K12X15X13TN 49241/12 2.4 12 15 13
K12X16X8TN 19242/12 2.9 12 16 8
K12X16X10TN 29242/12 3.4 12 16 10
K12X16X13TN 39242/12 3.8 12 16 13
K12X17X13TN 59242/12 4.4 12 17 13
K12X18X12TN 19244/12 5 12 18 12
K12X15X20TN   3.8 12 15 20
14 K14X17X10   4 14 17 10
K14X17X17   6.8 14 17 17
K14X18X10 29242/14 4.8 14 18 10
K14X18X13 39242/14 6.3 14 18 13
K14X18X14   6.8 14 18 14
K14X18X15 49242/14 7.3 14 18 15
K14X18X17 59242/14 8.1 14 18 17
K14X20X12 19243/14 8.6 14 20 12
15 K15X18X14   5.3 15 18 14
K15X18X17   6.4 15 18 17
K15X19X10 29242/15 5.1 15 19 10
K15X19X13 39241/15 7 15 19 13
K15X19X17 59241/15 8.8 15 19 17
K15X19X24 ZW 79241/15 10.5 15 19 24
K15X22X13 29242/15 8.9 15 22 13
K15X22X12 19243/15 10 15 22 12
K15X21X15 39242/15 13 15 21 15
K15X21X21   18.2 15 21 21
16 K16X20X10 29241/16 5.7 16 20 10
K16X20X13 39241/16 7.1 16 20 13
K16X20X17 59241/16 9.2 16 20 17
K16X21X10 19242/16 3.7 16 21 10
K16X22X12 19243/16 10.4 16 22 12
K16X22X13   11.9 16 22 13
K16X22X16   13.7 16 22 16
K16X22X20 49243/16 16.7 16 22 20
K16X23X14 19244/16 20 16 23 14
K16X24X20 19245/16 24.9 16 24 20
17 K17X21X10 29241/17 5.6 17 21 10
K17X21X13 39241/17 7.5 17 21 13
K17X21X17 59241/17 9.5 17 21 17
K17X23X14 29243/17 11.5 17 23 14
18 K18X22X10 29241/18 6.1 18 22 10
K18X22X13 39241/18 7.7 18 22 13
K18X22X17 59241/18 10.8 18 22 17
K18X24X12 19243/18 11.6 18 24 12
K18X24X13   12.6 18 24 13
K18X24X13.5   13 18 24 13.5
K18X24X20 49243/18 19 18 24 20
K18X25X14   14.9 18 25 14
K18X25X22   24.3 18 25 22
K18X26X14   19 18 26 14
K18X28X16 19244/18 24 18 28 16
19 K19X23X13   8.2 19 23 13
K19X23X17   11.1 19 23 17
20 K20X24X10 29241/20 6.5 20 24 10
K20X24X12   8 20 24 12
K20X24X13 39241/20 8.9 20 24 13
K20X24X17 59241/20 11.2 20 24 17
K20X26X12 19243/20 13.2 20 26 12
K20X26X16 K9249/20 17.5 20 26 16
K20X26X17 39243/20 18.2 20 26 17
K20X26X20 49243/20 22 20 26 20
K20X28X20 19245/20 26.8 20 28 20
K20X28X25 29245/20 36.2 20 28 25
K20X30X30 39245/20 56 20 30 30
21 K21X25X13   9 21 25 13
K21X25X17   12 21 25 17
22 K22X26X10 29241/22 7.1 22 26 10
K22X26X13 39241/22 9.4 22 26 13
K22X26X17 59241/22 12.1 22 26 17
K22X27X13 29242/22 10.8 22 27 13
K22X28X17 39243/22 19.7 22 28 17
K22X28X23 59243/22 26 22 28 23
K22X29X16 19244/22 22.2 22 29 16
K22X30X15TN   14.4 22 30 15
K22X30X20 19245/22 28 22 30 20
K22X32X24   43.4 22 32 24
23 K23X35X16TN   30 23 35 16
24 K24X28X10   8.1 24 28 10
K24X28X13   10.1 24 28 13
K24X28X17 9243/24 13.2 24 28 17
K24X29X13   13.5 24 29 13
K24X30X17   21.5 24 30 17
K24X30X31   39.1 24 30 31
25 K25X29X10 29241/25 8.3 25 29 10
K25X29X13 39241/25 10.4 25 29 13
K25X29X17 59241/25 13.7 25 29 17
K25X30X13 29242/25 12.9 25 30 13
K25X30X20 59242/25 20.5 25 30 20
K25X30X25   21 25 30 25
K25X30X26 52.436 21.6 25 30 26
K25X31X17 39243/25 21.8 25 31 17
K25X31X21 39243/25 26.2 25 31 21
K25X32X16 19244/25 24.5 25 32 16
K25X33X20 19245/25 32 25 33 20
K25X33X24 29245/25 38.7 25 33 24
K25X34X18   32 25 34 18
K25X35X30 39245/25 65.5 25 35 30
K25X30X26 ZW   27 25 30 26
26 K26X30X10   9 26 30 10
K26X30X13   11.4 26 30 13
K26X30X17   15 26 30 17
K26X31X13   9.9 26 31 13
K26X30X22   12.3 26 30 22
27 K27X32X17   29 27 32 27
28 K28X32X16.5   16 28 32 16.5
K28X32X17 9242/28 18.2 28 32 17
K28X33X13 29241/25 15.2 28 33 13
K28X33X17 49241/28 19.5 28 33 17
K28X33X27 TN 79241/28 19 28 33 27
K28X34X17 39242/28 24.2 28 34 17
K28X35X16 19243/28 26 28 35 16
K28X35X18   31 28 35 18
K28X35X20 29243/28 35 28 35 20
K28X35X27   47 28 35 27
K28X36X16   40 28 36 16
K28X40X18   50 28 40 18
K28X40X25   71 28 40 25
30 K30X33X10     30 33 10
K30X34X13   14.6 30 34 13
K30X35X13 29241/30 16.3 30 35 13
K30X35X17 49241/30 21.3 30 35 17
K30X35X26     30 35 26
K30X35X27 19241/30 33.3 30 35 27
K30X37X16 19243/30 26.4 30 37 16
K30X38X25 29244/30 43 30 38 25
K30X39X21     30 39 21
K30X40X18   44 30 40 18
K30X40X27 92401/30T 60 30 40 27
K30X40X30 49243/30 78 30 40 30
K30X35X26   32 30 35 26
K30X42X44.1     30 42 44.1
32 K32X37X13 29241/32 18.3 32 37 13
K32X37X17 49241/32 22.4 32 37 17
K32X37X27 19241/32 36.7 32 37 27
K32X37X28 TN   22.3 32 37 28
K32X38X16   25 32 38 16
K32X38X20 49242/32 31 32 38 20
K32X38X26 TN   25.2 32 38 26
K32X39X16 19243/32 36.7 32 39 16
K32X39X18   37.2 32 39 18
K32X40X20 19244/32 48 32 40 20
K32X40X36   73 32 40 36
K32X46X32   119 32 46 32
K32X40X42 TN   771 32 40 42
35 K35X40X13 29241/35 188 35 40 13
K35X40X17 49241/35 25.3 35 40 17
K35X40X25 29244/35 31 35 40 25
K35X40X27 TN 19241/35 23.4 35 40 27
K35X40X27 79241/35 28 35 40 27
K35X40X30 39244/35 43 35 40 30
K35X42X16 19243/35 34 35 42 16
K35X42X18   39.2 35 42 18
K35X42X30 49243/35 62.4 35 42 30
K35X43X18   38 35 43 18
K35X45X20   55.5 35 45 20
K35X45X30 29245/35 80 35 45 30
K35X45X49   120 35 45 49
K35X40X30 ZW   48 35 40 30
K35X42X20 ZW 29243/35 41 35 42 20
36 K36X41X30   52 36 41 30
K36X42X16   50 36 42 16
37 K37X42X17   25.8 37 42 17
K37X42X27   40.7 37 42 27
K37X45X26   60.5 37 45 26
38 K38X43X17 49241/38 26.9 38 43 17
K38X43X27 49241/38 43.2 38 43 27
K38X46X20 19244/38 46 38 46 20
K38X46X32   72.7 38 46 32
39 K39X44X24   38 39 44 24
K39X44X26 ZW   29.5 39 44 26
40 K40x44x13   20 40 44 13
K40x45x13 29241/40 21.5 40 45 13
K40x45x17 49241/40 27.4 40 45 17
K40x45x21   36.5 40 45 21
K40x45x27 19241/40 46 40 45 27
K40x46x17 39242/40 30 40 46 17
K40x47x18   45.2 40 47 18
K40x47x20 29243/40 42 40 47 20
K40x48x20 19244/40 57.7 40 48 20
K40x45x30 ZW   48 40 45 30
42 K42x47x13 29241/42 22.5 42 47 13
K42x47x17 49241/42 31.1 42 47 17
K42x47x25 TN   25.4 42 47 25
K42x47x27 79241/42 46.6 42 47 27
K42x48x35 79242/42 60 42 48 35
K42x50x18   53 42 50 18
K42x50x20 19244/42 54 42 50 20
K42x47x30 ZW   54 42 47 30
43 K43x48x17   29.3 43 48 17
K43x48x27   45.7 43 48 27
K43x50x18 9249/43 48.5 43 50 18
45 K45x49x19   27 45 49 19
K45x50x17 49241/45 25.5 45 50 17
K45x50x27 19241/45 50 45 50 27
K45x50x32 TN   45 45 50 32
K45x52x18   51 45 52 18
K45x52x21 TN   32.9 45 52 21
K45x53x20 19244/45 62.2 45 53 20
K45x53x21   65 45 53 21
K45x53x22   68.4 45 53 22
K45x53x28   78 45 53 28
K45x59x18 TN   60.5 45 59 18
K45x59x32   145.5 45 59 32
K45x59x36   195 45 59 36
K45x51x36 ZW   85 45 51 36
47 K47x52x17   32 47 52 17
K47x52x27   50.7 47 52 27
K47x53x25   53 47 53 25
K47x55x28   62.4 47 55 28
48　 K48x54x19 39242/48 44 48 54 19
K48x54x25 59242/48 55 48 54 25
50 K50x55x13.5   31 50 55 13.5
K50x55x17 49241/50 35 50 55 17
K50x55x20 59241/50 39.4 50 55 20
K50x55x30 9243/50 59.4 50 55 30
K50x57x18   53.4 50 57 18
K50x58x20 19244/50 64.9 50 58 20
K50x58x25 29244/50 81 50 58 25
52 K52x57x12   24 52 57 12
55 K55x60x20   43.4 55 60 20
K55x60x27   60.5 55 60 27
K55x60x30   68.6 55 60 30
K55x61x20   56 55 61 20
K55x62x18   58.4 55 62 18
K55x63x15   53 55 63 15
K55x63x20 19243/55 73.3 55 63 20
K55x63x25 29243/55 88 55 63 25
K55x63x32   117 55 63 32
K55x60x40ZW   96.5 55 60 40
56 K56x61x20   45 56 61 20
58 K58x63x17   42 58 63 17
K58x64x19   53 58 64 19
K58x65x18   52 58 65 18
K58x65x38ZW   106 58 65 38
60 K60x65x20 49241/60 50.5 60 65 20
K60x65x30 69241/60 71.2 60 65 30
K60x68x20 19243/60 79 60 68 20
K60x68x23   94 60 68 23
K60x68x25 29243/60 97 60 68 25
K60x68x27   98 60 68 27
K60x75x42   240 60 75 42
K60x66x33ZW   104 60 66 33
K60x66x40ZW   116 60 66 40
K60x68x30ZW   136 60 68 30
K60x68x34ZW   140 60 68 34
62 K62x70x40ZW   147.5 62 70 40
63 K63x70x21   75 63 70 21
64 K47x70x16   53 64 70 16
65 K65x70x20 49241/65 49 65 70 20
K65x70x30   83 65 70 30
K65x73x23   100 65 73 23
K65x73x30 39243/65 126 65 73 30
68 K68x74x20 49241/68 65 68 74 20
K68x74x30 69241/68 97 68 74 30
K68x74x35 ZW 79241/68 116 68 74 35
K68x75x20   120 68 75 32
70 K70x76x20 49241/70 70 70 76 20
K70x76x30 69241/70 100 70 76 30
K70x78x25 29243/70 115 70 78 25
K70x78x30 39243/70 136 70 78 30
K70x80x30 29244/70 150 70 80 30
K70x78x46 ZW   230 70 78 46
72 K72x80x20 19243/72 72 80 4500
73 K73x79x20   69 73 79 20
75 K75x81x20 49241/75 72 75 81 20
K75x81x30 69241/75 106 75 81 30
K75x83x23   113 75 83 23
K75x83x30 39243/75 147 75 83 30
K75x83x35 ZW 49243/75 165 75 83 35
K75x83x40 ZW 59243/75 190 75 83 40
80 K80x86x20 49241/80 76 80 86 20
K80x86x30 69241/80 114 80 86 30
K80x88x30 39243/80 141 80 88 30
K80x88x40 ZW 59243/80 204 80 88 40
K80x88x46 ZW 69243/80 235 80 88 46
85 K85x92x20 29241/85 96 85 92 20
90 K90x97x20 29241/90 103 90 97 20
K90x98x27   150 90 98 27
K90x98x30 39242/90 172 90 98 30
95 K95x102x20 29241/95 110 95 102 20
K95x103x30 ZW 39242/95 177 95 103 30
K95x103x40 ZW 59242/95 250 95 103 40
100 K100x107x21   120 100 107 21
K100x108x27   176 100 108 27
K100x108x30 39242/100 190 100 108 30
105 K105x112x21   123 105 112 21
K105x113x30 39242/105 198 105 113 30
110 K110X117X24   146 110 117 24
K110X118X30 39244/110 217 110 118 30
115 K115X123X27   200 115 123 27
K115X125X35     115 125 35
K115X125X40     115 125 40
120 K120X127X24   165 120 127 24
125 K125X133X35   275 125 133 35
130 K130X127X24   170 130 137 24
145 K145X153X26   262 145 153 26
155 K155X163X26   265 155 163 26
160 K160X170X46   550 160 170 46
165 K165X173X26   320 165 173 26
175 K175X183X32   400 175 183 32
185 K185X195X37   607 185 195 37
195 K195X205X37   620 195 205 37
210 K210X220X42   740 210 220 42
220 K220X230X42   790 220 230 42
240 K240X250X42   850 240 250 42
265 K265X280X50   1810 265 280 50

相关推荐

SKF PRMF455030轴承 FAG AH3236轴承 NSK NJ338EM轴承 FAG N1021-K-HS-PVPA-SP-H193轴承 KOYO HAR911CDF轴承 FAG带座轴承 两侧接触式密封 UCFC2 NTN BR48轴承 NSK 6904NR轴承 KOYO 7313B轴承 INA NX17Z轴承 NB SMF20G SMF40WUU WH16A TW30UU-OP轴承 SKF 53313轴承 TIMKEN T14520轴承 FAG带座轴承 两侧接触式密封 UCT20 KOYO HAR910CDT轴承 NTN 5204S轴承 MCGILL轴承MR24SS SKF PRMF353935轴承 TIMKEN 1985/1931-B轴承 NACHI NU2236E轴承 NMB微型轴承6000DDB3SD17M5MTA1LY121 6000 TIMKEN 355/3525轴承 NTN NJ219轴承 德国原装INA滚针轴承 F-53272.NUKR 海德
