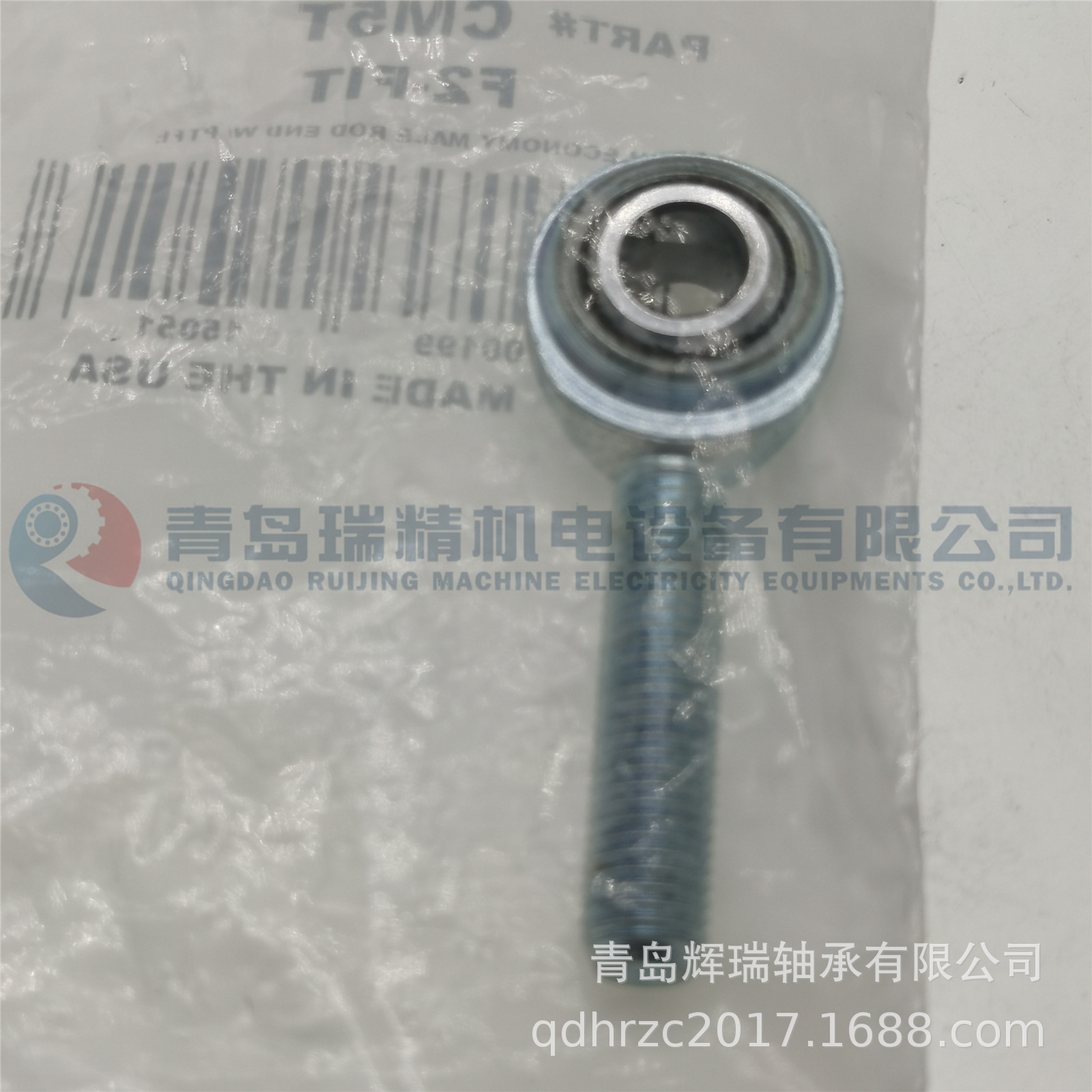

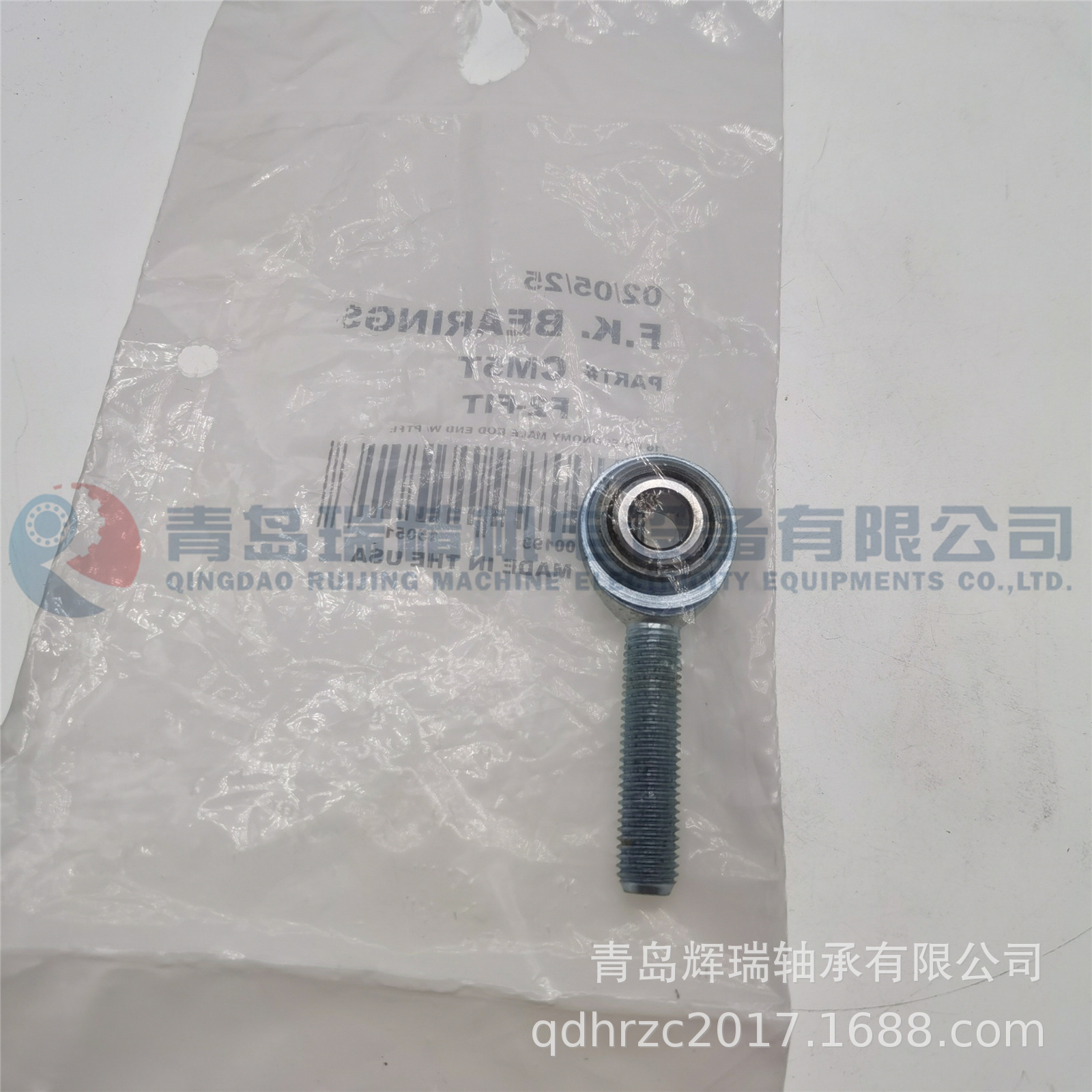

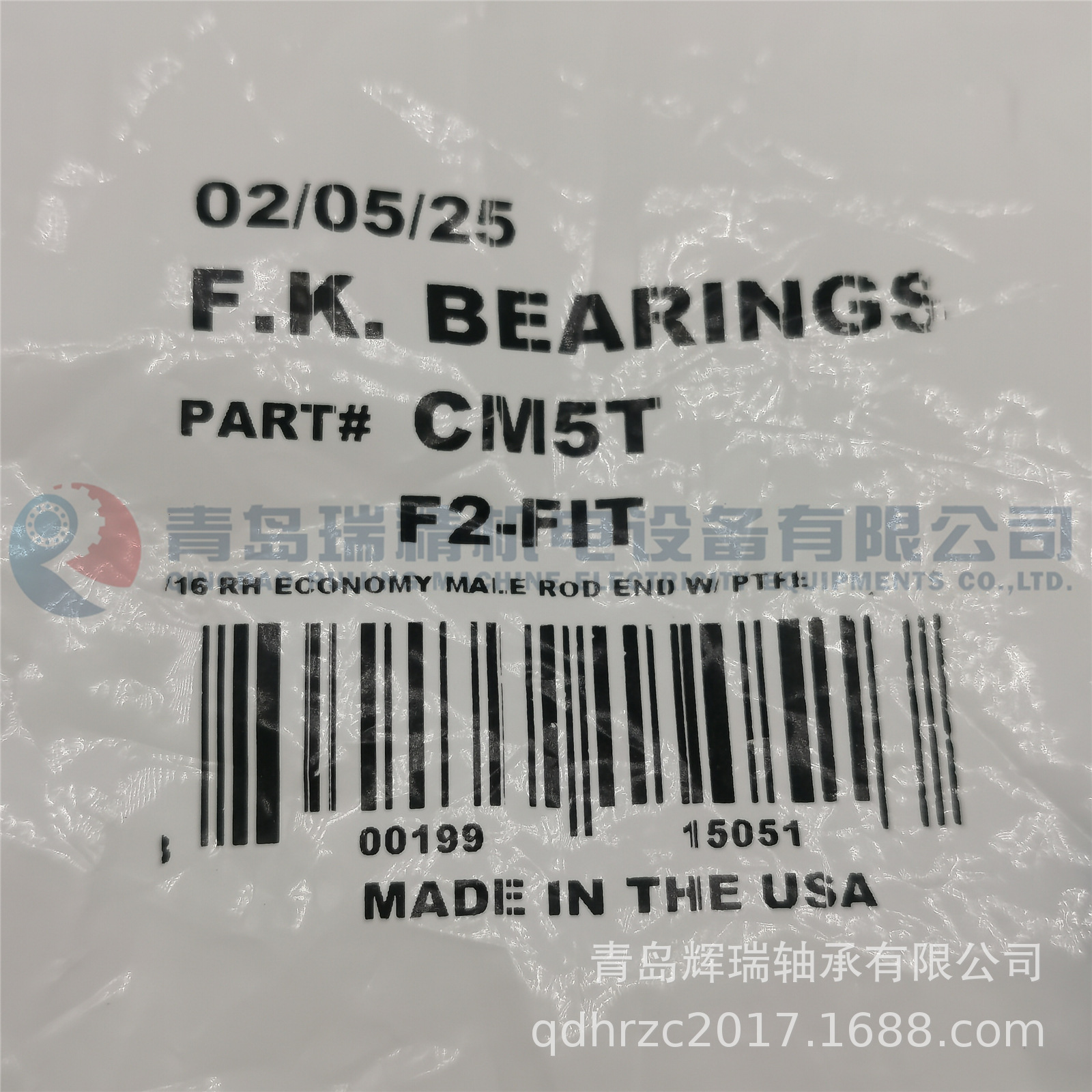

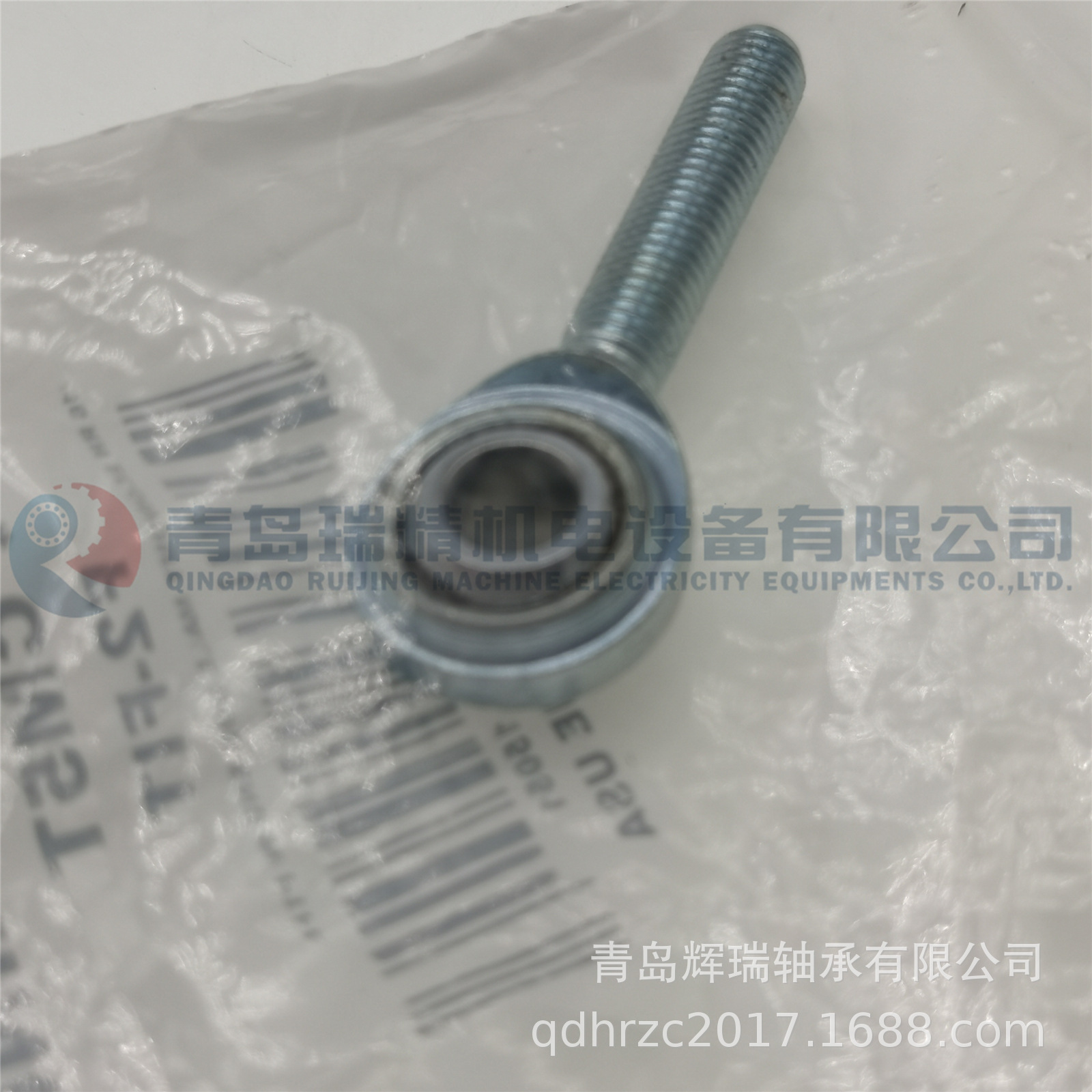

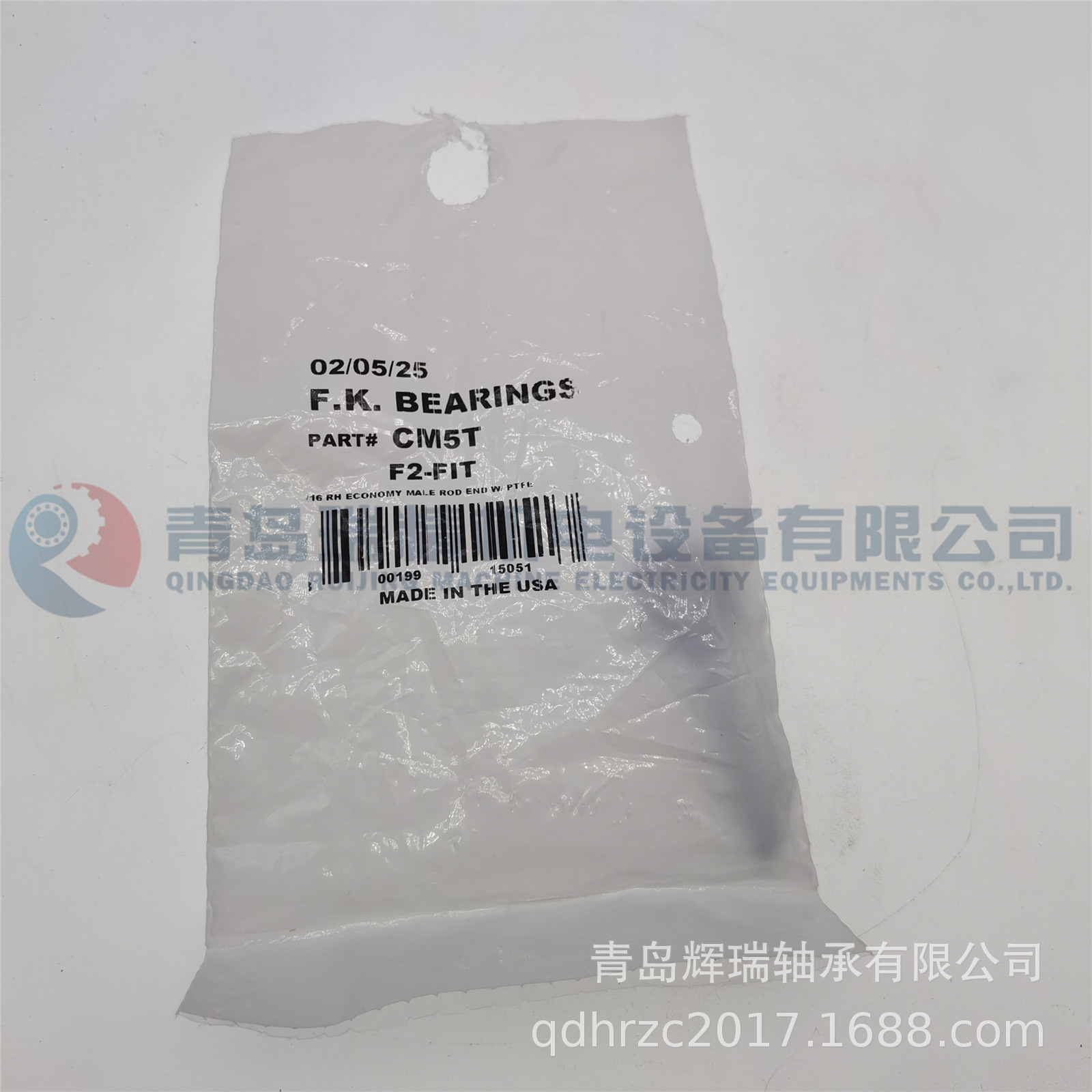

（期货）美国FK 杆端关节轴承 F.K. BEARINGS CM5T

电询库存情况

产品描述

（期货）美国FK 杆端关节轴承 F.K. BEARINGS CM5T

品牌	CM5T	主要下游平台	wish
主要销售地区	北美	轴承类型	杆端关节轴承
是否跨境出口专供货源	否	系列	杆端关节
轴承材质	合金	适用行业	汽车,食品加工/电机/海洋工程/医疗器械/制药设备/机床等,汽车轴承,油缸轴承

包装信息

商品件重尺

型号	重量(g)
CM5T	100

商品详情

Right Hand Part Number	Left Hand Part Number	B DIA	D DIA	W WTH	T WTH	Ball DIA	A LGTH	N THD	C LGTH	a Mis Angle	ULT Static Radial Load	Approx Weight
		+.065 -.013	+.38 -.38	+.13 -.13	+.13 -.13	REF	+.40 -.40	MM	+1.00 -1.00	REF	(Newton)	(grams)
JM5M*	JML5M*	5	16	8	6.25	11.10	33	M5x0.8	20	14	5,170	12
JM6M*	JML6M*	6	19	9	7	12.70	36	M6x1.0	22	13	7,295	18
JM8M	JML8M	8	22.25	12	8.75	15.88	42	M8x1.25	25	18	13,595	31
JM8MF	JML8MF	8	22.25	12	8.75	15.88	42	M8x1.0	25	18	13,595	31
JM10M	JML10M	10	27	14	10.5	19.05	48	M10x1.5	29	17	20,605	68
JM10MF	JML10MF	10	27	14	10.5	19.05	48	M10x1.25	29	17	20,605	68
JM12M	JML12M	12	30	16	12	22.23	54	M12x1.75	33	17	18,215	78
JM12MF	JML12MF	12	30	16	12	22.23	54	M12x1.25	33	17	18,215	78
JM14M	JML14M	14	34.75	19	13.50	25.40	60	M14x2.0	36	21	29,840	118
JM14MF	JML14MF	14	34.75	19	13.50	25.40	60	M14x1.5	36	21	29,840	118
JM16M	JML16M	16	38	21	14.25	28.58	66	M16x2.0	40	23	32,225	173
JM16MF	JML16MF	16	38	21	14.25	28.58	66	M16x1.5	40	23	32,225	173
JM18M	JML18M	18	42	23	16.25	31.75	72	M18x1.5	44	21	41,300	260
JM20M	JML20M	20	46	25	18	34.93	78	M20x1.5	47	20	50,952	290
JM20MC	JML20MC	20	46	25	18	34.93	78	M20x2.5	47	20	50,952	290
JM22M*	JML22M*	22	50	28	19.50	38.10	86	M22x1.5	51	22	56,238	315
JM25M*	JML25M*	25	60	31	22	42.86	95	M24x2.0	57	19	104,435	500
JM30M**	JML30M**	20	74.93	34.925	25.78	47.62	114.3	M30x2.0	63.5	17	193,732	1,224

* CHECK FOR AVAILABILITY

** TOLERANCE VARIATION FOR “D” & “A” ARE +/- .020, CHECK FOR AVAILABILITY

NEWTON x .2248 = lbf (FORCE)

3-PIECE CONSTRUCTION
METRIC
PTFE LINER AVAILABLE
STUDS AVAILABLE
OPTIONAL LUBRICATION FITTING AVAILABLE

BALL
- 52100 STEEL
- Rc 56 MIN
- HARD CHROME PLATED
BODY
- LOW CARBON STEEL
- ZINC PLATED
- CHROMATE TREATED
RACE
- ALLOY STEEL
- HEAT TREATED
- ZINC PLATED
- CHROMATE TREATED

Right Hand Part Number	Left Hand Part Number	B DIA	D DIA	W WTH	T WTH	Ball DIA	A LGTH	N THD	C LGTH	E DIA	F Flat	a Mis Angle	ULT Static Radial Load	Approx Weight
		+.065 -.013	+.38 -.38	+.13 -.13	+.13 -.13	REF	+.40 -.40	MM	+1.00 -1.00	+.25 -.25	+.25 -.25	REF	(Newton)	(grams)
JF5M*	JFL5M*	5	16	8	6.25	11.10	27	M5x0.8	14	11	9	14	7,090	17
JF6M*	JFL6M*	6	19	9	7	12.70	30	M6x1.0	14	13	11	13	10,575	25
JF8M	JFL8M	8	22.25	12	8.75	15.88	36	M8x1.25	17	16	14	18	14,075	40
JF8MF	JFL8MF	8	22.25	12	8.75	15.88	36	M8x1.0	17	16	14	18	14,075	40
JF10M	JFL10M	10	27	14	10.5	19.05	43	M10x1.5	21	19	17	17	20,605	80
JF10MF	JFL10MF	10	27	14	10.5	19.05	43	M10x1.25	21	19	17	17	20,605	80
JF12M	JFL12M	12	30	16	12	22.23	50	M12x1.75	24	22	19	17	18,215	95
JF12MF	JFL12MF	12	30	16	12	22.23	50	M12x1.25	24	22	19	17	18,215	95
JF14M	JFL14M	14	34.75	19	13.50	25.40	57	M14x2.0	27	25	22	21	29,840	160
JF14MF	JFL14MF	14	34.75	19	13.50	25.40	57	M14x1.5	27	25	22	21	29,840	160
JF16M	JFL16M	16	38	21	14.25	28.58	64	M16x2.0	33	27	22	23	32,225	215
JF16MF	JFL16MF	16	38	21	14.25	28.58	64	M16x1.5	33	27	22	23	32,225	215
JF18M	JFL18M	18	42	23	16.25	31.75	71	M18x1.5	36	28.58	25.4	21	41,305	300
JF20M	JFL20M	20	46	25	18	34.93	77	M20x1.5	40	30.15	27	20	50,955	350
JF20MC	JFL20MC	20	46	25	18	34.93	77	M20x2.5	40	30.15	27	20	50,955	350
JF22M*	JFL22M*	22	50	28	19.50	38.10	86	M22x1.5	43	37	32	22	56,240	390
JF25M*	JFL25M*	25	60	31	22	42.86	95	M24x2.0	48	42	36	19	104,435	700
JF30M**	JFL30M**	30	69.85	34.925	25.4	47.625	104.78	M30x2.0	53.98	41.28	38.1	17	193,732	1,093
