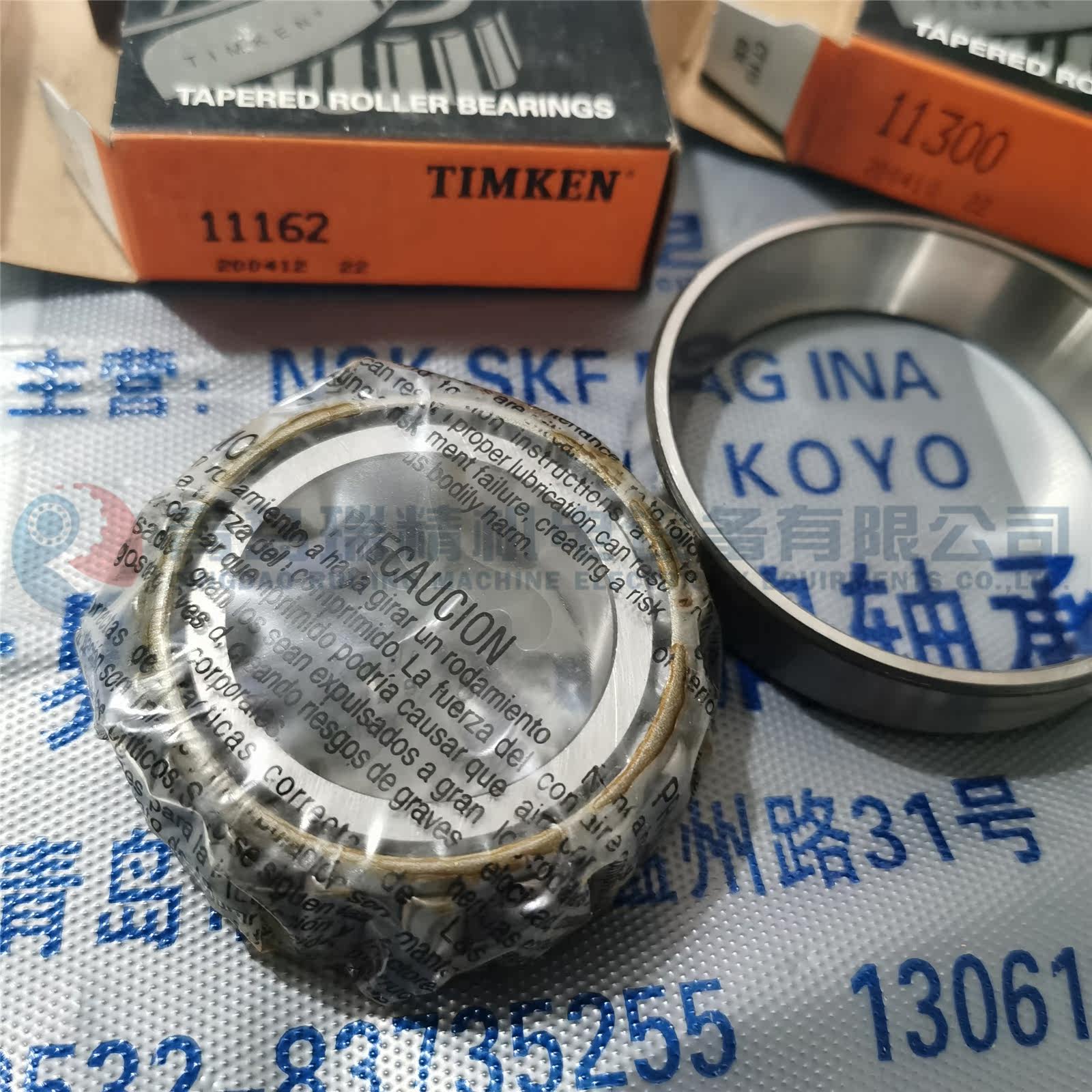

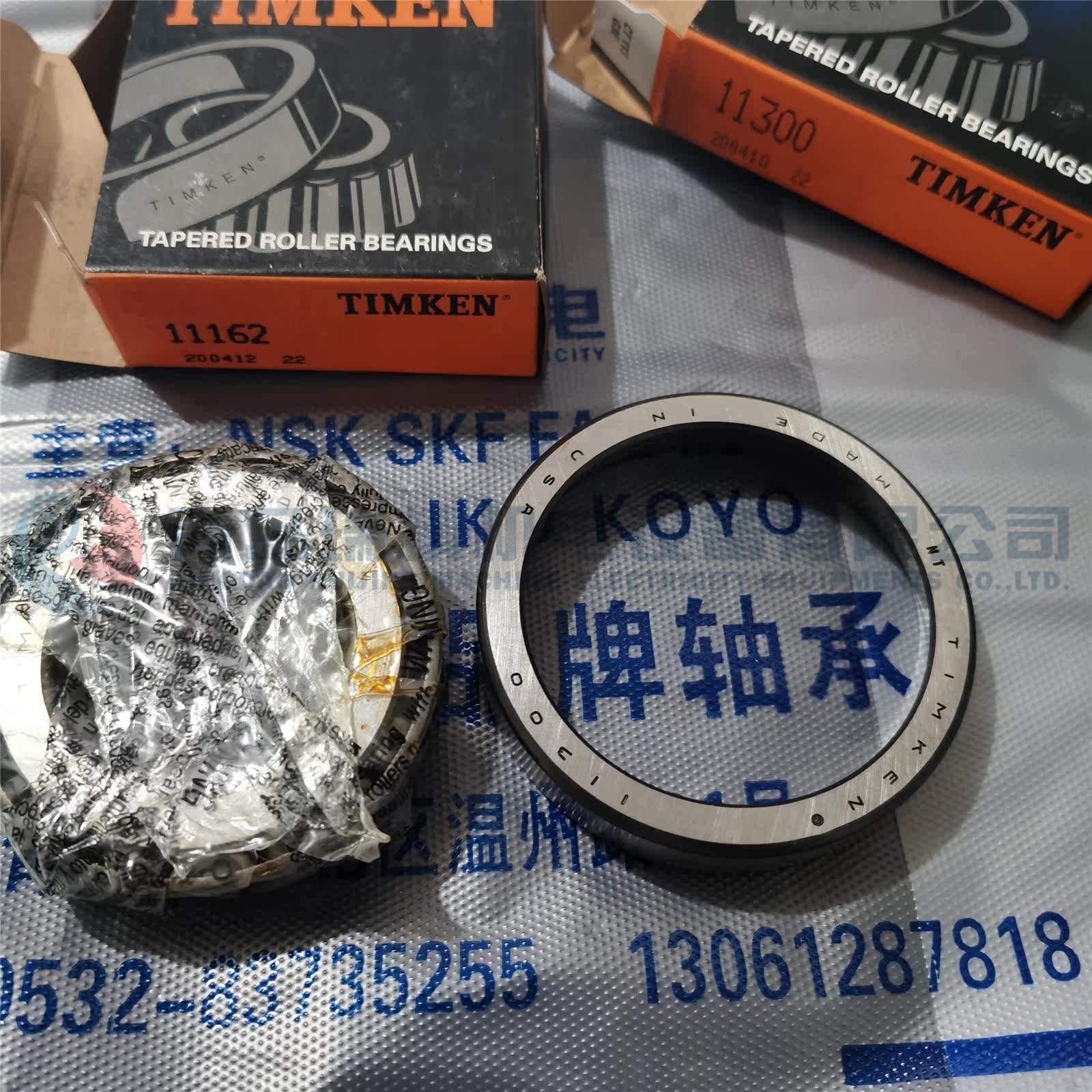

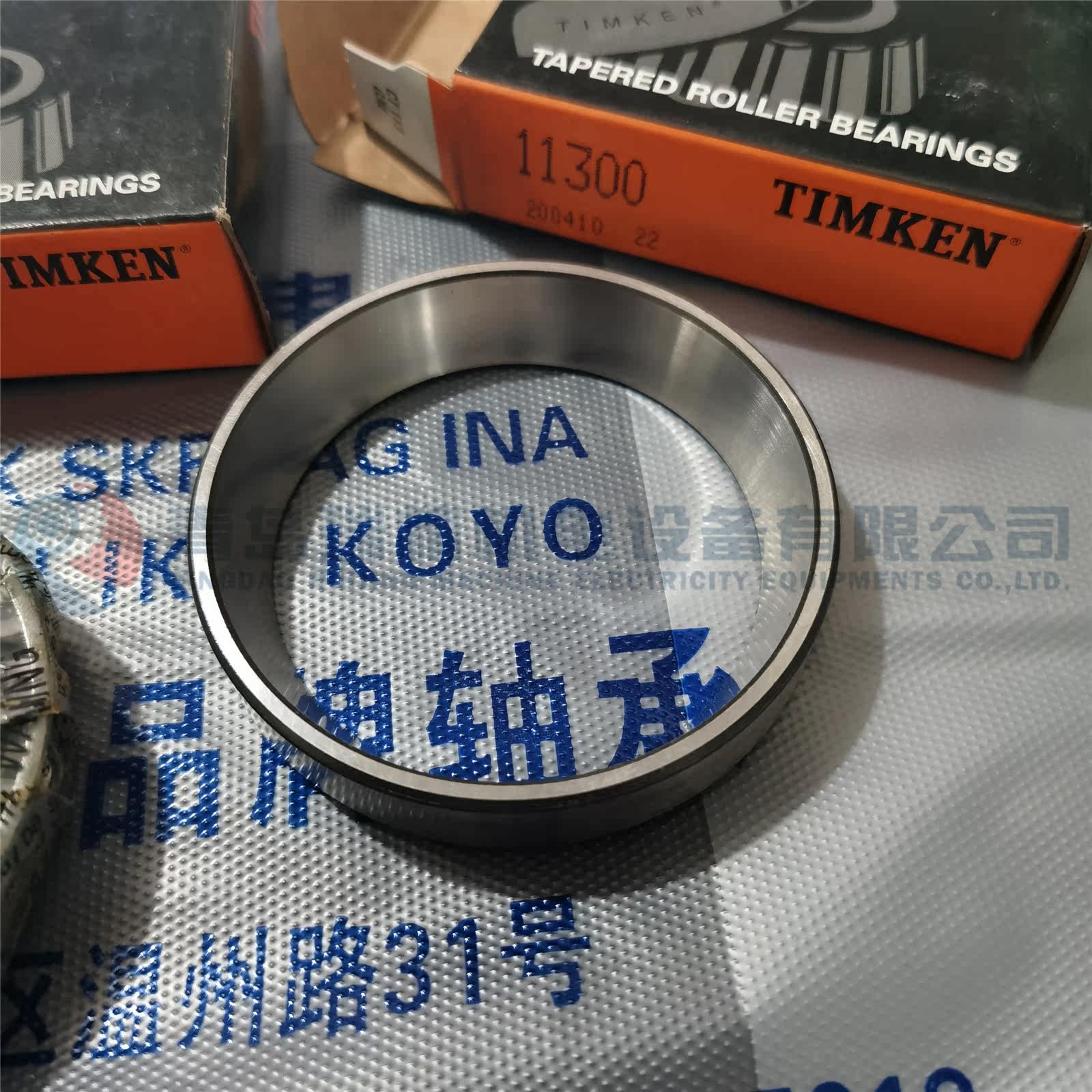

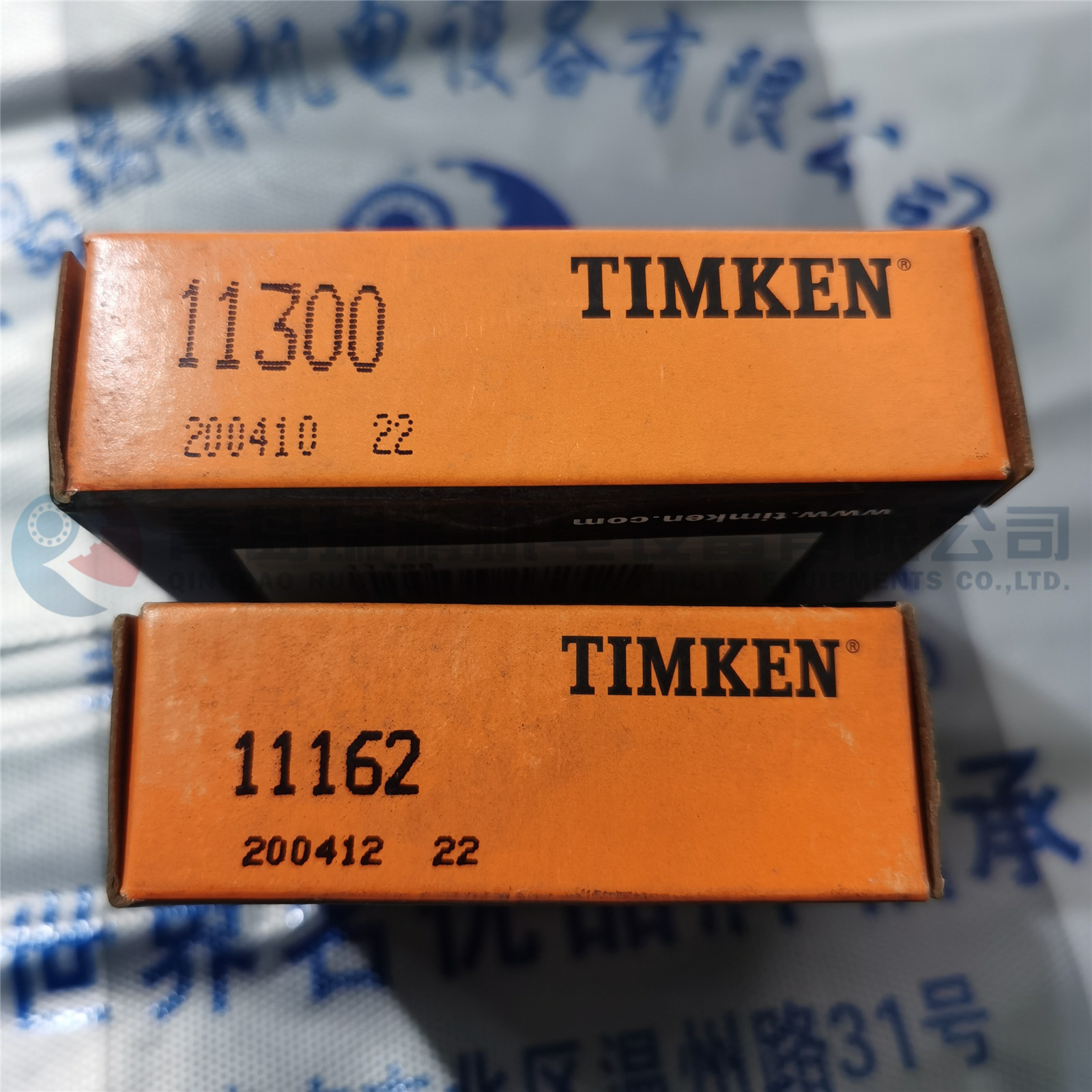

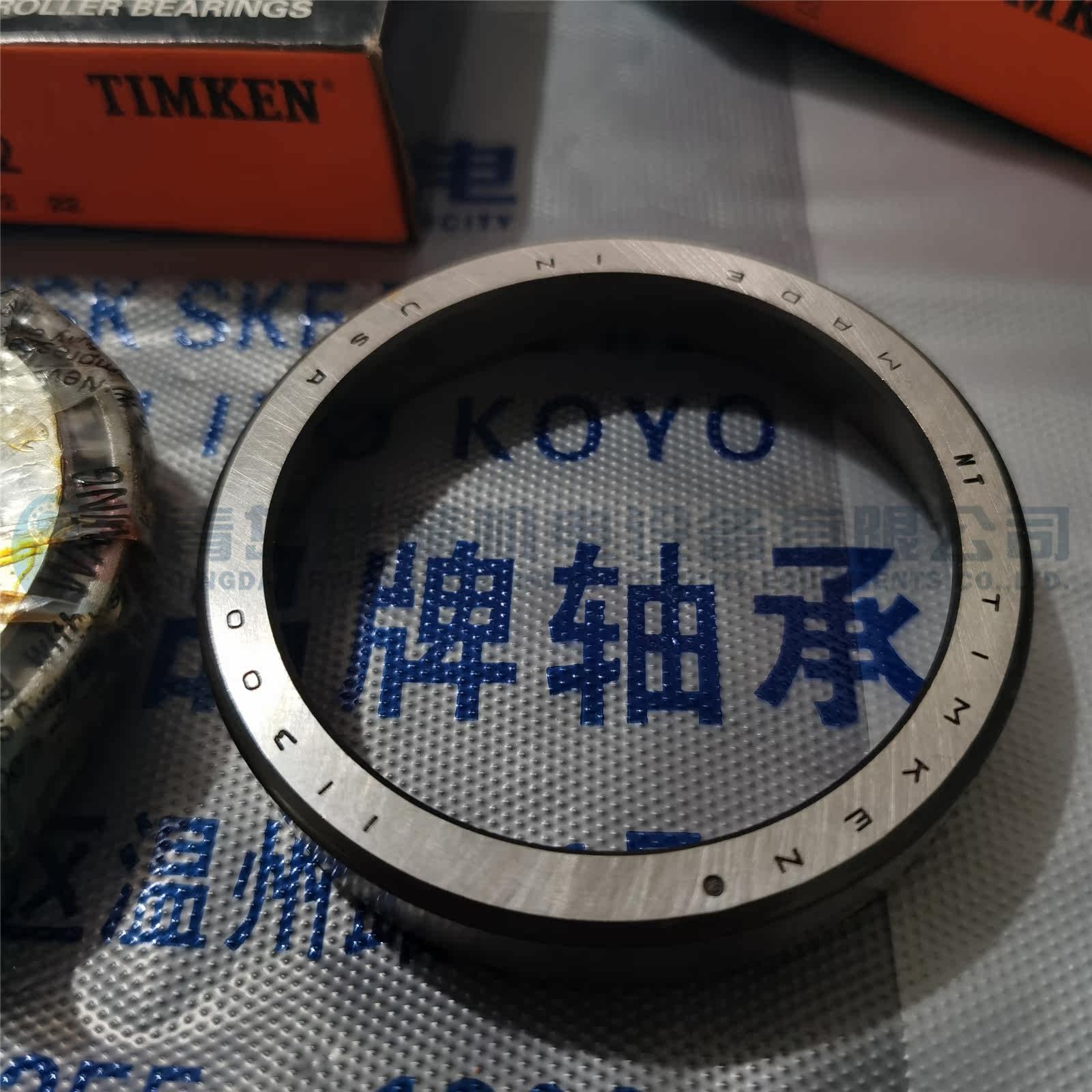

Tapered roller bearings 11162/11300
Bearing number : 11162/11300
Size (mm) : 41.275x76.2x18.009
Brand : Timken
Bore Diameter (mm) : 41,275
Outer Diameter (mm) : 76,2
Width (mm) : 18,009
Bearing dimensions and specification in Timken catalogue:
d - 41,275 mm
D - 76,2 mm
T - 18,009 mm
B - 17,384 mm
C - 14,288 mm
R - 1,5 mm
r - 1,5 mm
a - -0,8 mm
Da - 71 mm
db - 49 mm
da - 46,5 mm
Db - 67 mm
Weight - 0,34 Kg
Basic static load rating (C0) - 55,1 kN
Factor (G1) - 19,2
Factor (G2) - 16
Factor (Cg) - 0,018
Factor (K) - 1,2
Basic dynamic load rating (C90) - 11,5
Basic dynamic load rating (Ca90) - 9,63
Basic dynamic load rating (C1) - 44,5 kN
Calculation factor (e) - 0,49
Calculation factor (Y) - 1,23
Tags : Timken , 41.275x76.2x18.009
