| 订货号 | FCB-16 | 品牌 | NSK/恩斯凯 | 型号 | FCB-16 |
| 旧型号 | FCB-16 | 内径 | 16（mm） | 外径 | 22（mm） |
| 厚度 | 26（mm） | 保持架及其材料 | TH玻璃纤维增强酚醛树脂 | 重量 | 0.1（kg） |
| 用途 | 其他 | 样品或现货 | 现货 | 滚动体类型 | 滚针 |
| 滚动体列数 | 单列 | 滚道类型 | 直线滚道 | 使用特性 | 高速 |
| 轴承材质 | 高碳铬轴承钢（全淬透型)(GCr15) | 轴承材料 | HP | 角度 | 15度 |
| 密封盖 | 无密封 | 滚动体 | 钢球 | 精度等级 | P0 |
| 组配方式 | SU/G | 主要下游平台 | LAZADA | 主要销售地区 | 北美 |
| 有可授权的自有品牌 | 否 | 是否跨境货源 | 是 | 货号 | FCB-16 |
| 是否进口 | 进口 | 是否标准件 | 标准件 | 材质 | 其他 |

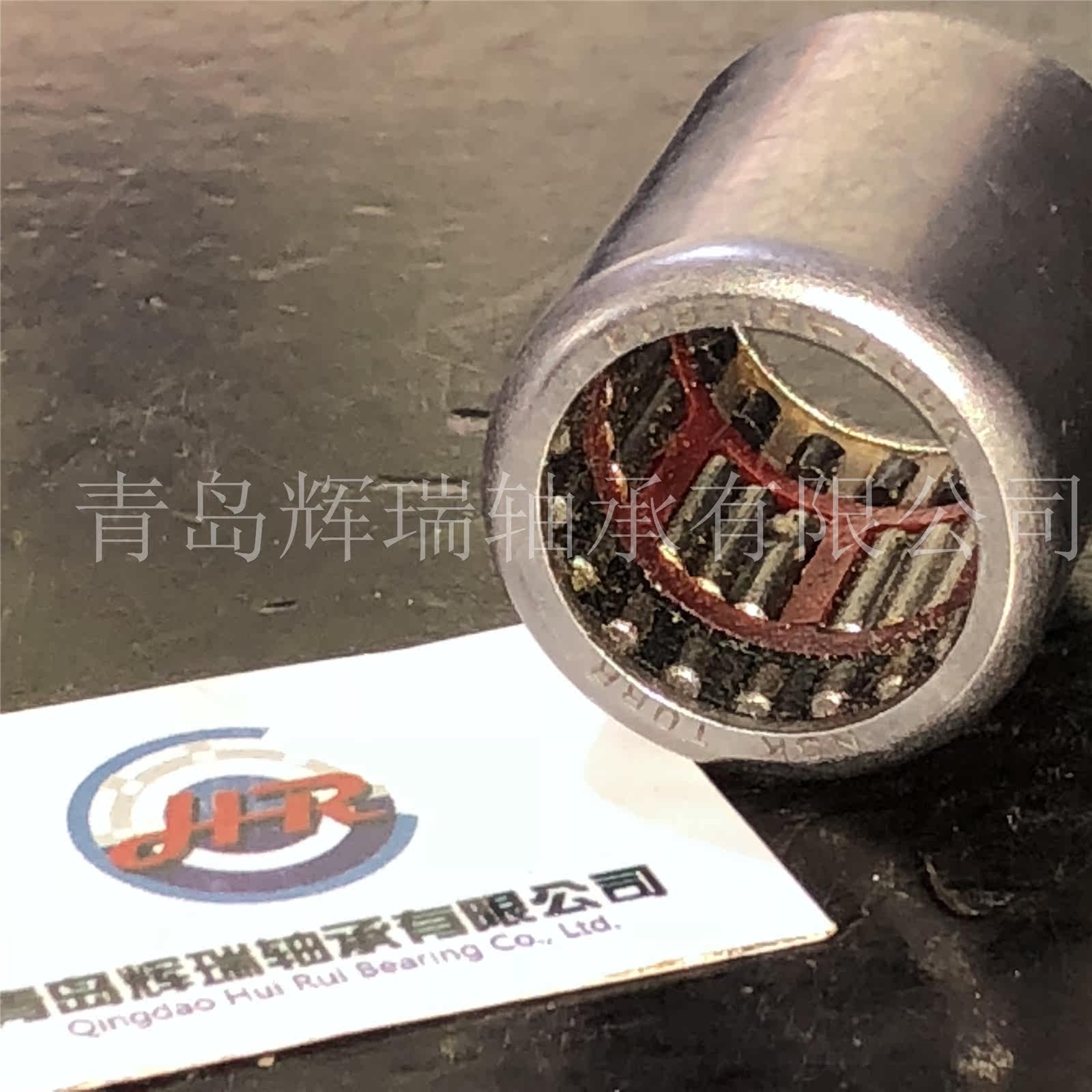

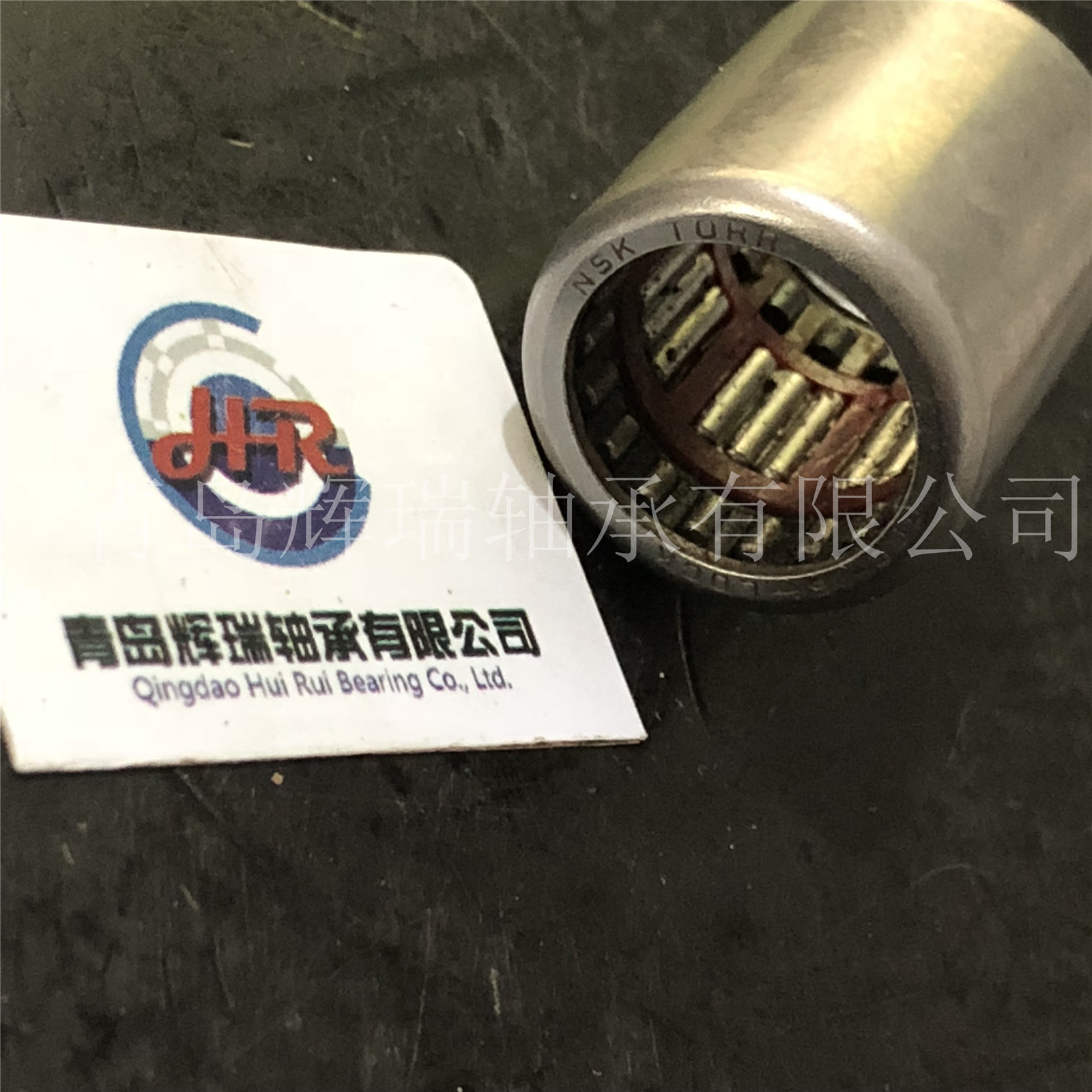

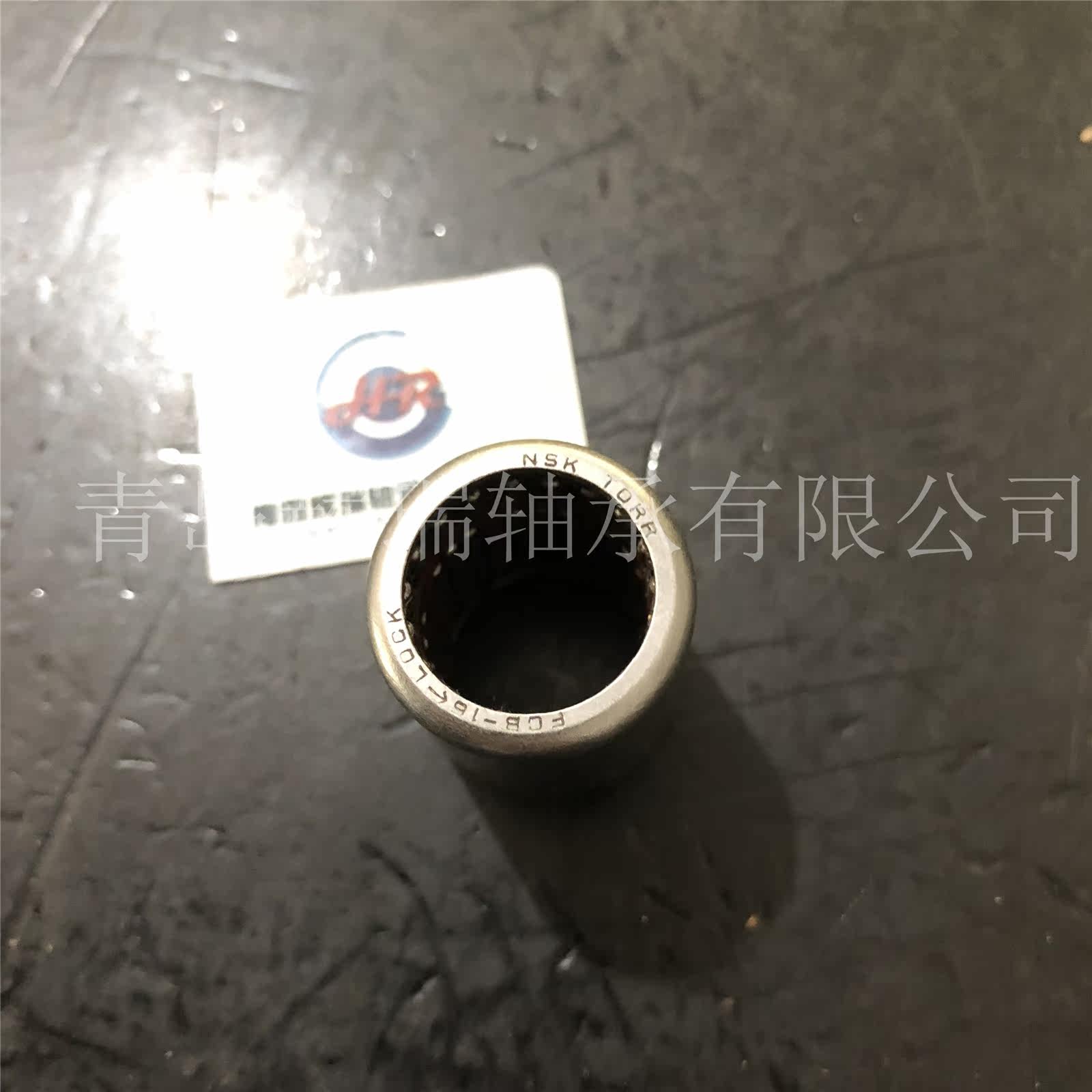

青岛辉瑞轴承有限公司供应NSK-TORR单向滚针轴承 FCB-16 内径16mm外径22mm厚度26mm青岛辉瑞轴承有限公司供应NSK-TORR单向滚针轴承 FCB-16 内径16mm外径22mm厚度26mm青岛辉瑞轴承有限公司供应NSK-TORR单向滚针轴承 FCB-16 内径16mm外径22mm厚度26mm青岛辉瑞轴承有限公司供应NSK-TORR单向滚针轴承 FCB-16 内径16mm外径22mm厚度26mm
| INA | Torrington | NSK | |||||||||
| DIMENSIONS | Clutch Designtation | ||||||||||
| Fw | D | C |
Plastic Springs |
Steel Springs |
Plastic Springs |
Steel Springs |
Plastic Springs |
Steel Springs |
|||
| inch | mm | inch | mm | inch | mm | ||||||
| 0.118 | 3 | 0.256 | 6.5 | 0.236 | 6 | HF0306KF | |||||
| 0.118 | 3 | 0.142 | 3.6 | 0.315 | 8 | HFL0308 | -- | ||||
| 0.157 | 4 | 0.315 | 8 | 0.236 | 6 | HF0406KF | -- | ||||
| 0.157 | 4 | 0.315 | 8 | 0.236 | 6 | HF0406KFR | -- | ||||
| 0.157 | 4 | 0.315 | 8 | 0.236 | 6 | FC-4-K | |||||
| 0.157 | 4 | 0.315 | 8 | 0.315 | 8 | HFL0408 | -- | ||||
| 0.236 | 6 | 0.394 | 10 | 0.315 | 8 | HF0608KF | |||||
| 0.236 | 6 | 0.394 | 10 | 0.472 | 12 | HF0612KF | HF0612 | FCS-6 | |||
| 0.236 | 6 | 0.394 | 10 | 0.472 | 12 | HF0612KFR | HF0612R | FC6K | |||
| 0.236 | 6 | 0.472 | 12 | 0.394 | 10 | HF061210 | |||||
| 0.236 | 6 | 0.394 | 10 | 0.591 | 15 | HFL0615KF | HFK0615 | ||||
| 0.236 | 6 | 0.394 | 10 | 0.591 | 15 | HFL0615KFR | HFL0615R | ||||
| 0.236 | 6 | 0.394 | 10 | 0.472 | 12 | -- | HFL061012K | ||||
| 0.250 | 6.35 | 0.437 | 11.112 | 0.500 | 12.7 | RC040708 | |||||
| 0.315 | 8 | 0.472 | 12 | 0.472 | 12 | HF0812KF | HF0812 | FCL-8-K | |||
| 0.315 | 8 | 0.472 | 12 | 0.472 | 12 | HF0812KFR | HF0812R | ||||
| 0.315 | 8 | 0.472 | 12 | 0.394 | 10 | -- | HF061210 | ||||
| 0.315 | 8 | 0.551 | 14 | 0.394 | 10 | -- | HF081410 | ||||
| 0.315 | 8 | 0.630 | 16 | 0.394 | 10 | -- | HF081610 | ||||
| 0.315 | 8 | 0.551 | 14 | 0.472 | 12 | -- | HF081412 | FC8 | |||
| 0.315 | 8 | 0.472 | 12 | 0.472 | 12 | -- | HFL081212K | ||||
| 0.315 | 8 | 0.551 | 14 | 0.472 | 12 | -- | HFL081412K | ||||
| 0.315 | 8 | 0.472 | 12 | 0.866 | 22 | HFL0822KF | HFL0822 | ||||
| 0.315 | 8 | 0.472 | 12 | 0.866 | 22 | HFL0822KFR | HFL0822R | ||||
| 0.375 | 9.525 | 0.625 | 15.875 | 0.500 | 12.7 | RC061008 | |||||
| 0.375 | 9.525 | 0.625 | 15.875 | 0.875 | 22.22 | RCB061014 | |||||
| 0.394 | 10 | 0.551 | 14 | 0.472 | 12 | HF1012KF | HF1012 | FCL-10-K | |||
| 0.394 | 10 | 0.551 | 14 | 0.472 | 12 | HF1012KFR | HF1012R | ||||
| 0.394 | 10 | 0.551 | 14 | 0.866 | 22 | HFL1022KF | HFL1022 | ||||
| 0.394 | 10 | 0.551 | 14 | 0.866 | 22 | HFL1022KFR | HFL1022R | ||||
| 0.394 | 10 | 0.630 | 16 | 0.472 | 12 | FC-10 | |||||
| 0.472 | 12 | 0.709 | 18 | 0.630 | 16 | -- | HF1216 | FC-12 | |||
| 0.472 | 12 | 0.709 | 18 | 1.024 | 26 | -- | HFL1226 | ||||
| 0.500 | 12.7 | 0.750 | 19.05 | 0.500 | 12.7 | RC081208 | |||||
| 0.500 | 12.7 | 0.750 | 19.05 | 0.875 | 22.22 | RCB081214 | |||||
| 0.551 | 14 | 0.551 | 14 | 0.787 | 20 | FCB8 | |||||
| 0.551 | 14 | 0.787 | 20 | 0.630 | 16 | -- | HF1416 | FC14K | |||
| 0.551 | 14 | 0.787 | 20 | 1.024 | 26 | -- | HFL1426 | ||||
| 0.625 | 15.875 | 0.875 | 22.225 | 0.625 | 15.88 | RC101410 | |||||
| 0.625 | 15.875 | 0.875 | 22.225 | 1.000 | 25.4 | RCB101416 | |||||
| 0.630 | 16 | 0.630 | 16 | 0.787 | 20 | FCB10 | |||||
| 0.630 | 16 | 0.866 | 22 | 0.630 | 16 | -- | HF1616 | FC-16 | |||
| 0.630 | 16 | 0.866 | 22 | 1.024 | 26 | -- | HFL1626 | ||||
| 0.709 | 18 | 0.709 | 18 | 1.024 | 26 | FCB12 | |||||
| 0.709 | 18 | 0.945 | 24 | 0.630 | 16 | -- | HF1816 | ||||
| 0.709 | 18 | 0.945 | 24 | 1.024 | 26 | -- | HFL1826 | ||||
| 0.750 | 19.05 | 1.000 | 25.4 | 0.625 | 15.88 | RC121610 | |||||
| 0.750 | 19.05 | 1.000 | 25.4 | 1.000 | 25.4 | RCB121616 | |||||
| 0.787 | 20 | 1.024 | 26 | 0.630 | 16 | -- | HF2016 | FC-20 | |||
| 0.787 | 20 | 1.024 | 26 | 1.024 | 26 | -- | HFL2026 | ||||
| 0.866 | 22 | 0.866 | 22 | 1.024 | 26 | FCB16 | |||||
| 0.984 | 25 | 1.260 | 32 | 0.787 | 20 | -- | HF2520 | FC-25 | |||
| 0.984 | 25 | 1.260 | 32 | 1.181 | 30 | -- | HFL2530 | ||||
| 1.000 | 25.4 | 1.313 | 33.338 | 0.625 | 15.88 | RC162110 | |||||
| 1.000 | 25.4 | 1.313 | 33.338 | 1.063 | 26.99 | RCB162117 | |||||
| 1.024 | 26 | 1.024 | 26 | 1.024 | 26 | FCB20 | |||||
| 1.181 | 30 | 1.457 | 37 | 0.787 | 20 | -- | HF3020 | FC-30 | |||
| 1.181 | 30 | 1.457 | 37 | 1.181 | 30 | -- | HFL3030 | ||||
| 1.260 | 32 | 1.260 | 32 | 1.181 | 30 | FCB25 | |||||
| 1.378 | 35 | 1.654 | 42 | 0.787 | 20 | -- | HF3520 | FC35 | |||
| 1.378 | 35 | 1.654 | 42 | 1.181 | 30 | -- | HFL3530 | ||||
| 1.457 | 37 | 1.457 | 37 | 1.181 | 30 | FCB30 | |||||
| 1.654 | 42 | 1.654 | 42 | 1.181 | 30 | FCB35 | |||||
