美国雷科达 LINK-BELT 轴承芯 CB22439H 孔径2-7/16

美国雷科达 LINK-BELT 轴承芯 CB22439H 孔径2-7/16

  • 型号：
  • CB22439H
  • 品牌：
  • LINK-BELT轴承
  • 系列：
  • 内径d：
  • mm
  • 外径D：
  • mm
  • 厚度B：
  • mm
美国雷科达 LINK-BELT 轴承芯 CB22439H 孔径2-7/16参数

美国雷科达 LINK-BELT 轴承芯 CB22439H 孔径2-7/16



品牌 LINK-BELT 主要下游平台 wish
主要销售地区 非洲 轴承类型 无扣环双轴承型
是否跨境出口专供货源 否 形状 圆形
系列 UC 轴承材质 高碳铬轴承钢（全淬透型)(GCr15)
适用行业 机械制造/农机配件/传送设备,机械轴承,提升机械,包装机械

包装信息

商品件重尺


规格型号 重量(g)
CB22439H 5000


商品详情

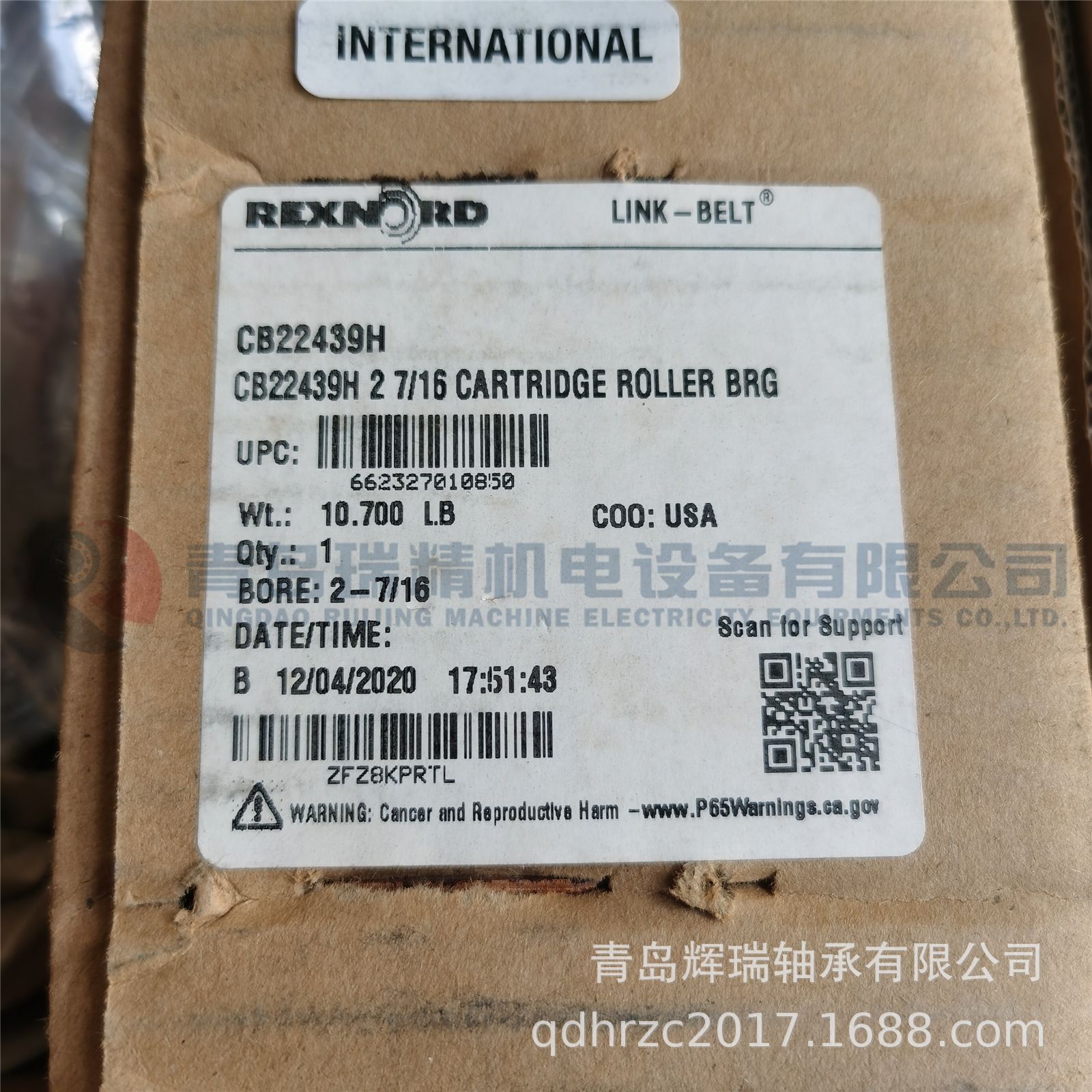

LINK-BELT CB22439H.jpg

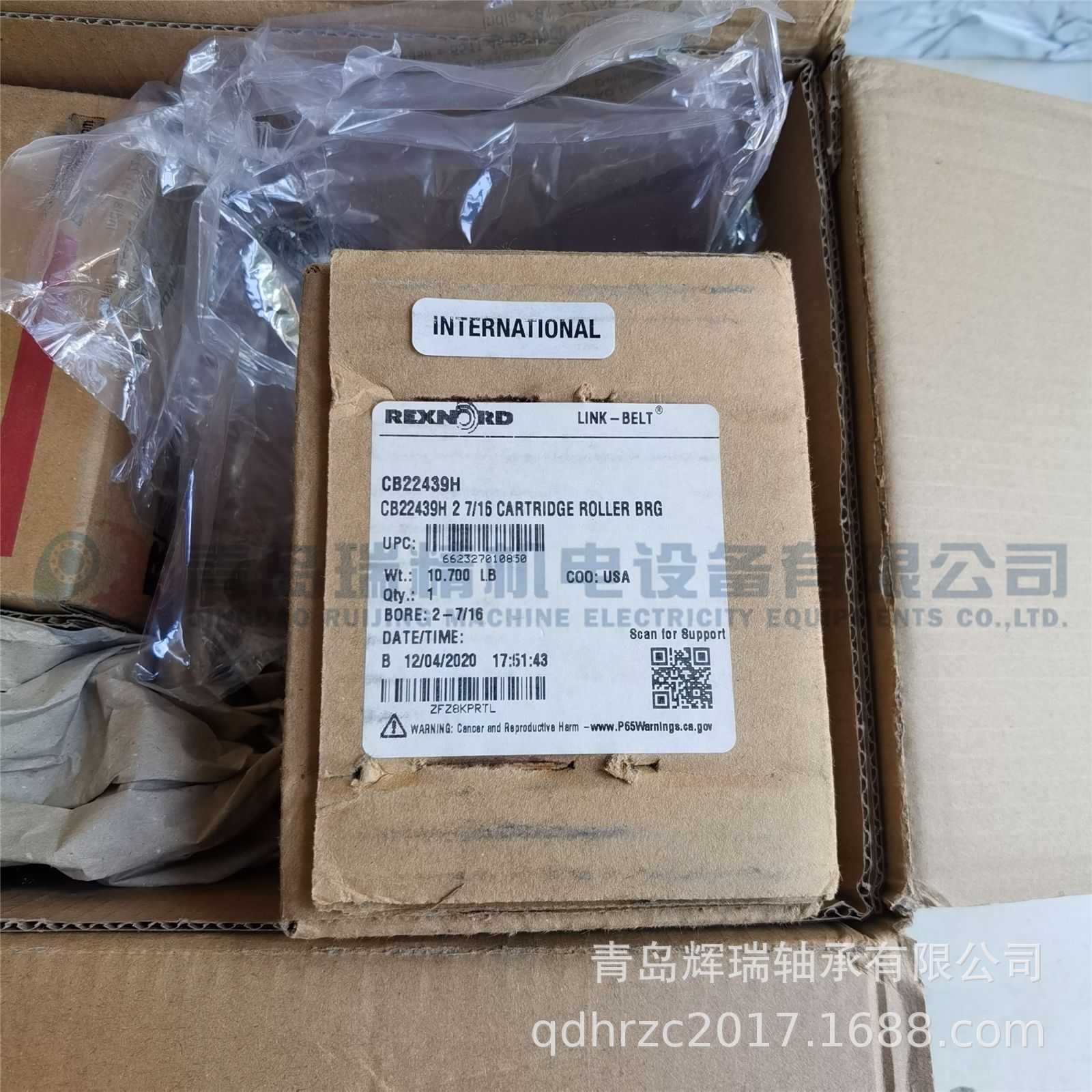

LINK-BELT CB22439H (2).jpg

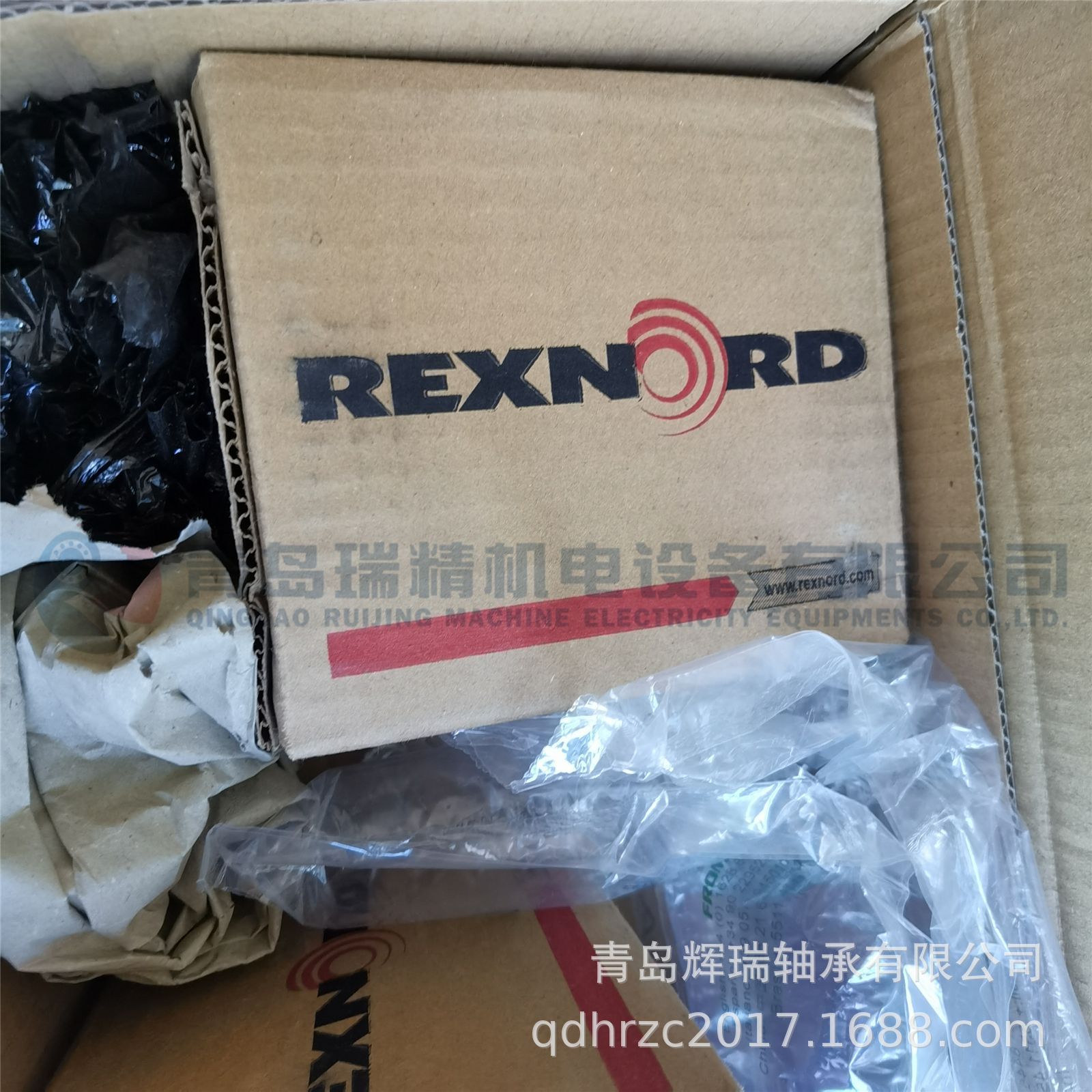

LINK-BELT CB22439H (3).jpg

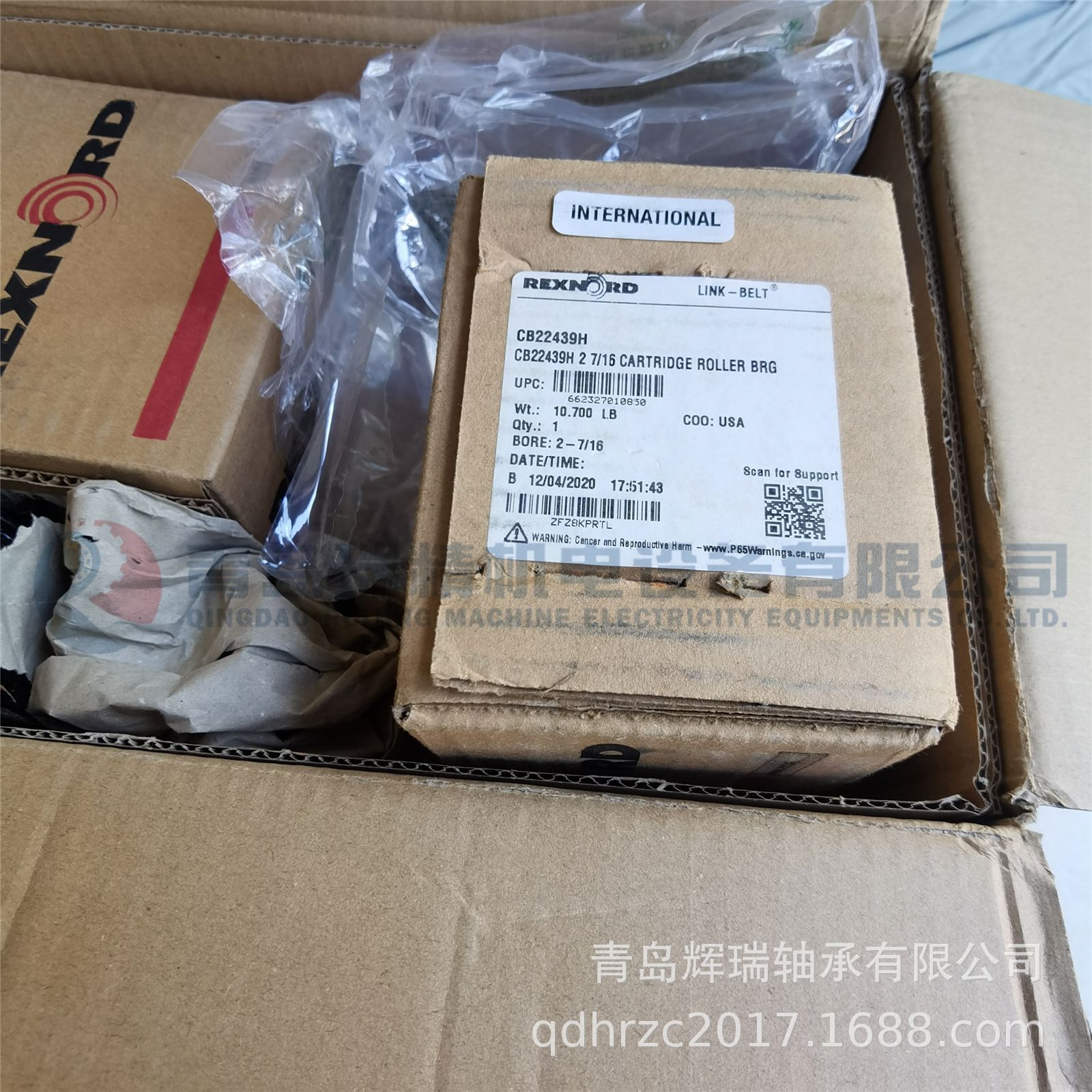

LINK-BELT CB22439H (4).jpg


Technical Specifications
  • Fixed/Expansion:Fixed
  • Housing Construction:Solid
  • Housing Material:Cast Iron
  • Housing Style:Cartridge Block
  • Radial Clearance:C0 STANDARD
  • Seal Type:Clearance Seal
  • Ability to Relubricate:Yes
  • Available Seal Type:E Lip Seal; H Labyrinth Seal; E7 Triple Lip Seal
  • Bore Diameter (in):2.4375 in
  • Cage Material:Steel
  • Centerline to Outermost Bearing Face (in):2.19 in
  • End Cap:B440DTC
  • Grease Fitting Thread Size:1/8 NPT
  • Height:5.50
  • Housing Cast Face to Outermost Bearing Face (in):0.88 in
  • Housing Width (in):2.63 in
  • Inner Ring Outside Diameter (in):2.901 in
  • Insert:B439L
  • Length:5.50
  • Length Through Bore (in):3.5 in
  • Locking Collar Outside Diameter (in):3.56 in
  • Locking Device Kit:B440SC
  • Lubricant:Lithium Complex NLGI 2 Grease
  • Max Operating Temperature (C):107 C
  • Max Operating Temperature (F):225 F
  • Maximum Speed (RPM):2300 rpm
  • Microlock Kit:B456MLK
  • Misalignment Capability:±2.0° Misalignment - Dynamic
  • Misalignment Type:Dynamic
  • Net Weight:10.23
  • Outside Diameter (in):5 in
  • Overall Height (in):5 in
  • Overall Length (in):5 in
  • Overall Width (in):3.5 in
  • Primary Seal:STEEL CLEARANCE SEAL
  • Radial Dynamic Load Capacity (lb):38300 lb
  • Rolling Element:Spherical Roller
  • Seal Kit:B440HS
  • Setscrew Torque (in-lbs):680 in/lbs
  • Shaft Locking Type:Single Set Collar
  • Size Code:B440
  • Slot Depth (in):0.23 in
  • Slot Length (in):0.92 in
  • Slot Width (in):0.55 in
  • Static Load Rating (lb):53500 lb
  • Unit of Dimension:IN
  • Vibration Frequency Fundamental Train:0.0072 cps
  • Vibration Frequency Inner Ring Defect:0.1791 cps
  • Vibration Frequency Outer Ring Defect:0.1376 cps
  • Vibration Frequency Roller Spin:0.0607 cps
  • Weight unit:LB
  • Width:4.13

LINK-BELTCB22439H轴承我司目前有部分库存，您可致电我司咨询销售人员关于轴承CB22439H的图纸、轴承CB22439H价格或同型号其他品牌替换等资料！我司与LINK-BELT厂家常年批量订购CB22439H，以保证CB22439H轴承质量正宗，价格最优。订购原装LINK-BELT CB22439H轴承请拨打：0532-83735255、13061287818
热销轴承型号：上一篇：K-O-Y-O-FULLER 双列圆锥滚子轴承 57518 TR1312/1YD 5556503 FAFNR VAK 1 3/4 GRA112RRB T-40 KOYO 6318-2RU轴承 IKO GBRI608432U轴承 TIMKEN 210RJ02轴承 NTN NA4900L轴承 FAG 53204轴承 HQW HYQSV7806CTA轴承 KOYO 302/22R轴承 NTN MR182616轴承 下一篇：MYONIC 不锈钢微型轴承 EL-730-C1 = DDL-730 SS683 3X7X2 mm
美国雷科达 LINK-BELT 轴承芯 CB22439H 孔径2-7/16轴承图纸
