直线滑动圆柱轴承装置
 |
 |
 |
|
HSMA
|
HSMA W
|
HSME
|
|
Built-in Bush Type |
||||||||
|
型号 |
Type |
Shaft |
Dimensions (mm) |
Model No |
Basic Load Rating |
|||
|
Length |
Width |
Height |
Dynamic(N) |
Static(kgf) |
||||
|
HSMA∝UU SC∝UU
SCE∝UU SCE∝VUU |
Block Type
STD |
13 |
39 |
44 |
30 |
HSM/LM13GUU |
520 |
800 |
|
16 |
44 |
50 |
38.5 |
HSM/LM16GUU |
790 |
1200 |
||
|
20 |
50 |
54 |
41 |
HSM/LM20GUU |
900 |
1400 |
||
|
25 |
67 |
76 |
51.5 |
HSM/LM25GUU |
1000 |
1600 |
||
|
30 |
72 |
78 |
59.5 |
HSM/LM30GUU |
1600 |
2800 |
||
|
35 |
80 |
90 |
68 |
HSM/LM35GUU |
1700 |
3200 |
||
|
40 |
90 |
102 |
78 |
HSM/LM40GUU |
2200 |
4100 |
||
|
50 |
110 |
122 |
102 |
HSM/LM50GUU |
3900 |
8100 |
||
|
HSMA∝GWUU SC∝WUU SCE∝WUU |
Block Type Long Type |
13 |
75 |
44 |
30 |
HSM/LM13GUX2 |
830 |
1600 |
|
16 |
85 |
50 |
38.5 |
HSM/LM16GUX2 |
1250 |
2400 |
||
|
20 |
96 |
54 |
41 |
HSM/LM20GUX2 |
1440 |
2800 |
||
|
25 |
130 |
76 |
51.5 |
HSM/LM25GUX2 |
1640 |
3200 |
||
|
30 |
140 |
78 |
59.5 |
HSM/LM30GUX2 |
2500 |
5600 |
||
|
35 |
155 |
90 |
68 |
HSM/LM35GUX2 |
2700 |
6400 |
||
|
40 |
175 |
102 |
78 |
HSM/LM40GUX2 |
3500 |
8200 |
||
|
50 |
215 |
122 |
102 |
HSM/LM50GUX2 |
6200 |
16200 |
||
|
HSME∝GUU (Body: Bronze) HSMSE∝GUU (Body: SUS) SBR∝UU |
Open Type |
16 |
45 |
45 |
33 |

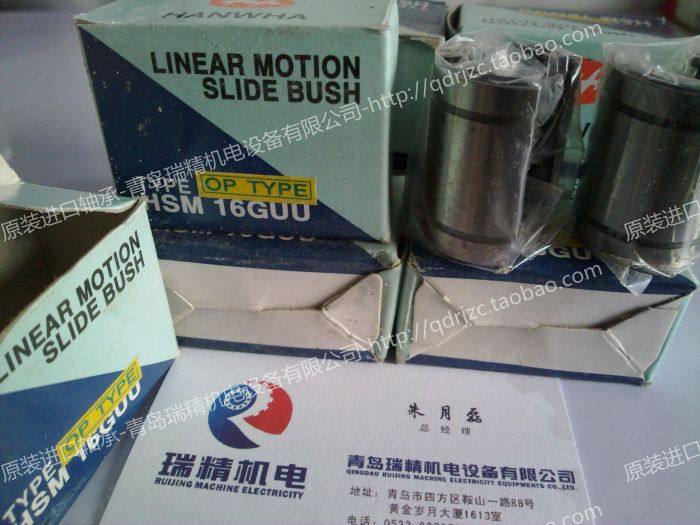

HSM/LM16GUU-OP |
790 |
1200 |
|
20 |
50 |
48 |
39 |
HSM/LM20GUU-OP |
900 |
1400 |
||
|
25 |
65 |
60 |
47 |
HSM/LM25GUU-OP |
1000 |
1600 |
||
|
30 |
70 |
70 |
56 |
HSM/LM30GUU-OP |
1600 |
2800 |
||
|
35 |
80 |
80 |
63 |
HSM/LM35GUU-OP |
1700 |
3200 |
||
|
40 |
90 |
90 |
72 |
HSM/LM40GUU-OP |
2200 |
4100 |
||
