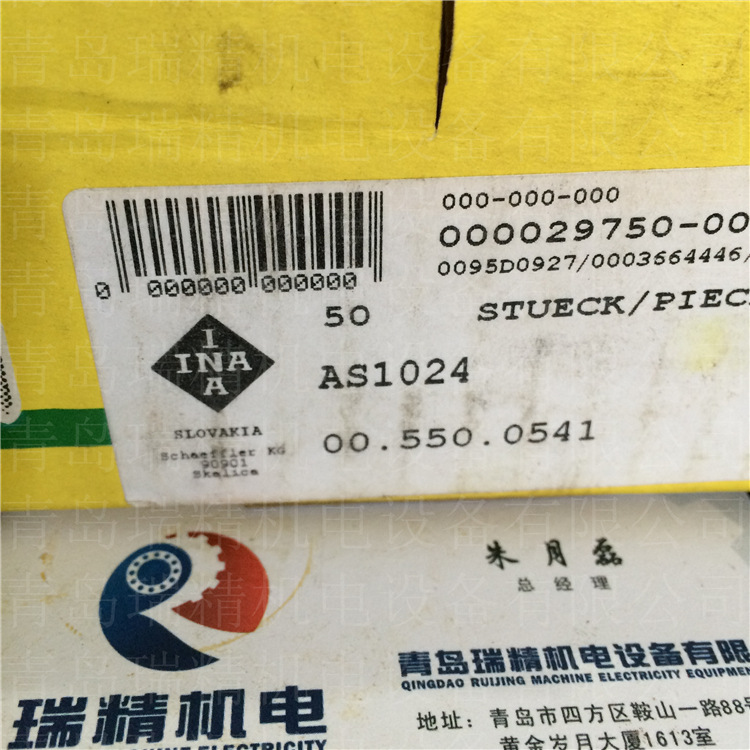

德国INA推力滚针轴承AXK1024-A +垫片AS1024青岛瑞精机电现货供应0532-83735255
内径：10mm
外径：24mm
宽度：3mm
型号：德国INA推力滚针轴承AXK1024-A +垫片AS1024
类型：滚针轴承
品牌：INA
备注： 滚针轴承
轴径
Sharf
Diameter INA轴承型号
Bearing Designation 质量Mass(g） 推力垫圈
Thrust Washers 质量Mass(g） 轴承垫圈Bearing Washers 座圈
Housing
Washers 轴圈
Shaft
Washers 质量Mass(g）
AXK AS LS GS WS
4 AXK0414TN 0.8 AS0414 1
5 AXK0515TN 0.9 AS0515 1
6 AXK0619TN 1.1 AS0619 2 LS0619 4
8 AXK0821TN 2 AS0821 2 LS0821 4
10 AXK1024 3.1 AS1024 3 LS1024 7
12 AXK1226 3.1 AS1226 3 LS1226 8
15 AXK1528 4.1 AS1528 3 LS1528 GS81102 WS81102 9
17 AXK1730 4.4 AS1730 4 LS1730 GS81103 WS81103 9
20 AXK2035 5.2 AS2035 5 LS2035 GS81104 WS81104 13
25 AXK2542 7.2 AS2542 7 LS2542 GS81105 WS81105 19
30 AXK3047 8.2 AS3047 8 LS3047 GS81106 WS81106 22
35 AXK3552 10 AS3552 9 LS3552 GS81107 WS81107 29
40 AXK4060 16.2 AS4060 12 LS4060 GS81108 WS81108 40
45 AXK4555 18.2 AS4565 13 LS4565 GS81109 WS81109 50
50 AXK5070 20.5 AS5070 14 LS5070 GS81110 WS81110 55
55 AXK5576 28.5 AS5576 18 LS5578 GS81111 WS81111 88
60 AXK6085 33 AS6085 22 LS6085 GS81112 WS81112 97
65 AXK6590 35.5 AS6590 24 LS6590 GS81113 WS81113 115
70 AXK7095 60.5 AS7095 25 LS7095 GS81114 WS81114 123
75 AXK75100 62 AS75100 27 LS75100 GS81115 WS81115 142
80 AXK80105 64 AS80105 28 LS80105 GS81116 WS81116 151
85 AXK85110 68 AS85110 29 LS85110 GS81117 WS81117 159
90 AXK90120 87 AS90120 39 LS90120 GS81118 WS81118 234
100 AXK100135 106 AS100135 50 LS100135 Gs81120 WS81120 350
