| 种类 | 外球面轴承座 | 品牌 | fyh | 型号 | UCF208J |
| 加工定制 | 否 | 是否标准件 | 标准件 | 样品或现货 | 现货 |
| 是否进口 | 进口 | 用途 | UCF208J | 材质 | UCF208J |
| 尺寸 | UCF208J | 是否跨境货源 | 否 | 类型 | UCF208J |

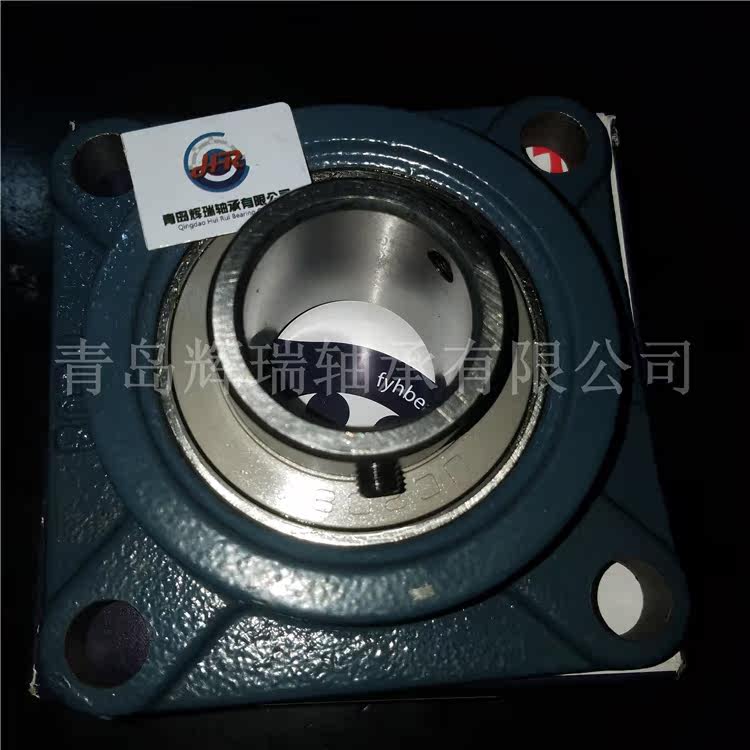

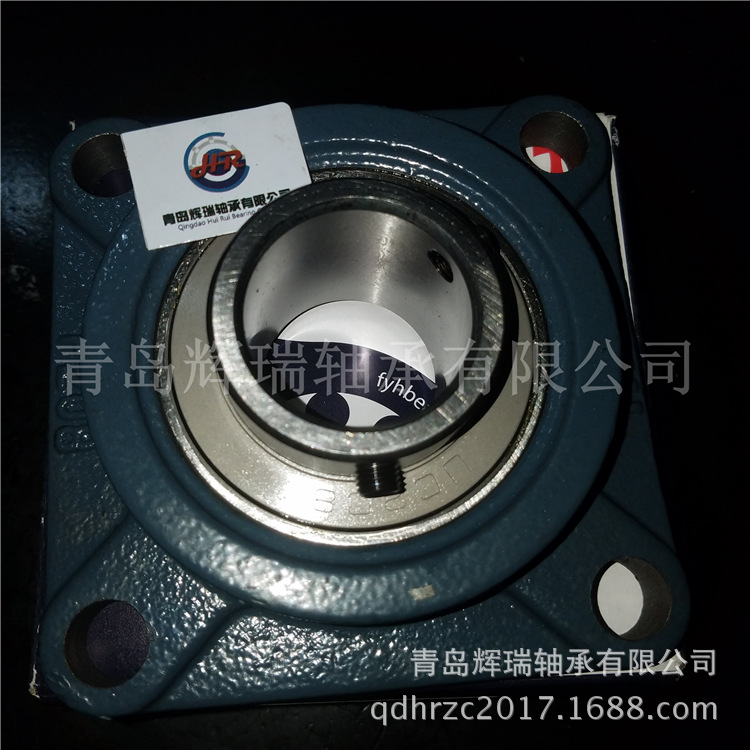

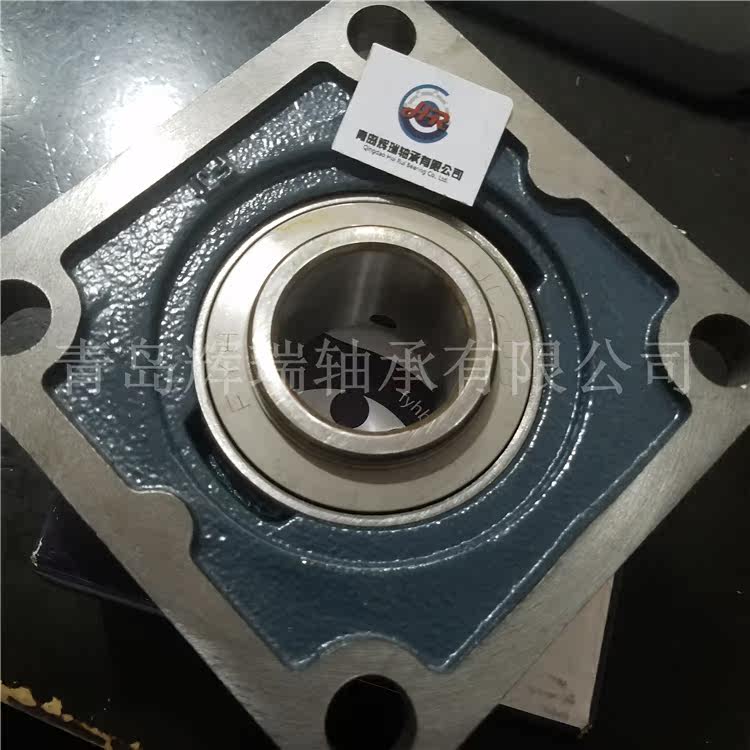

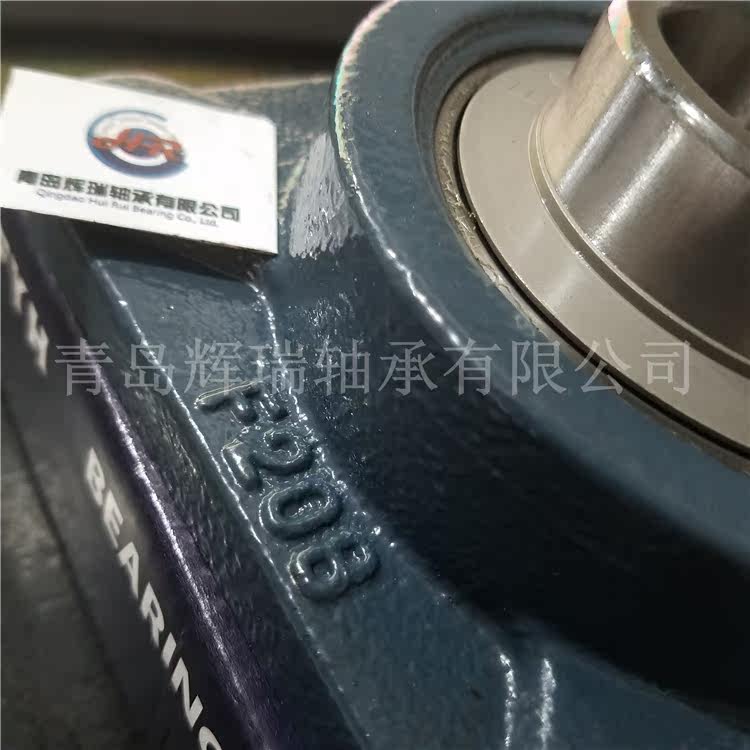

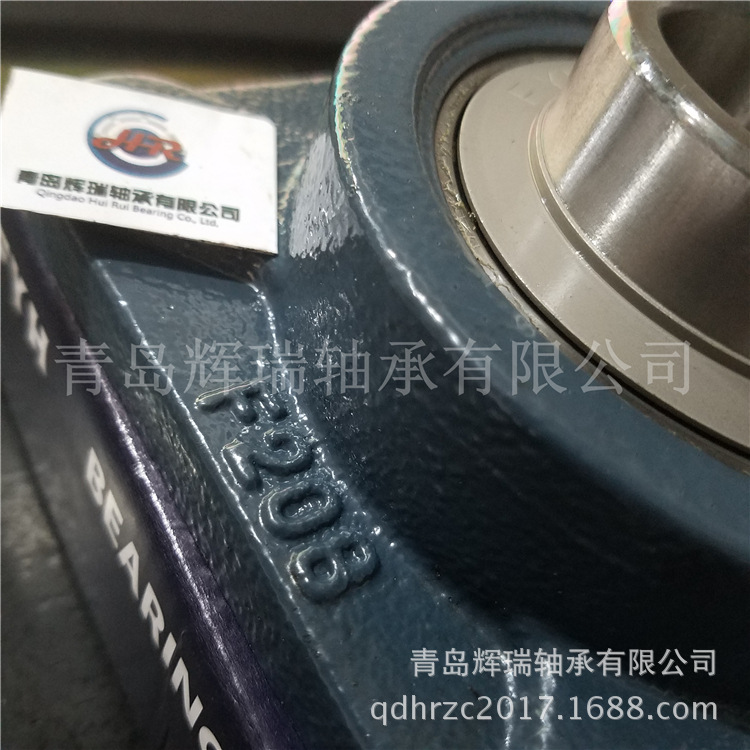

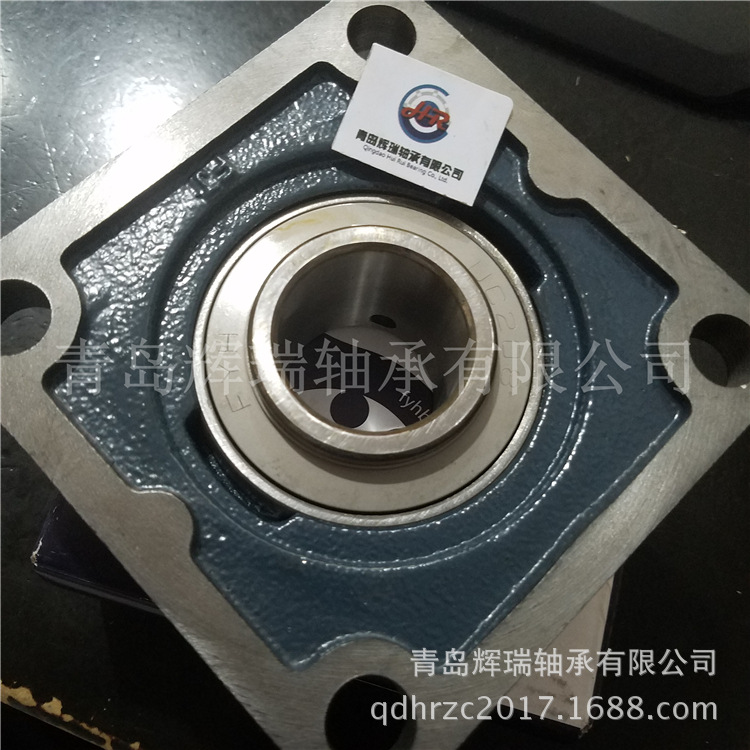

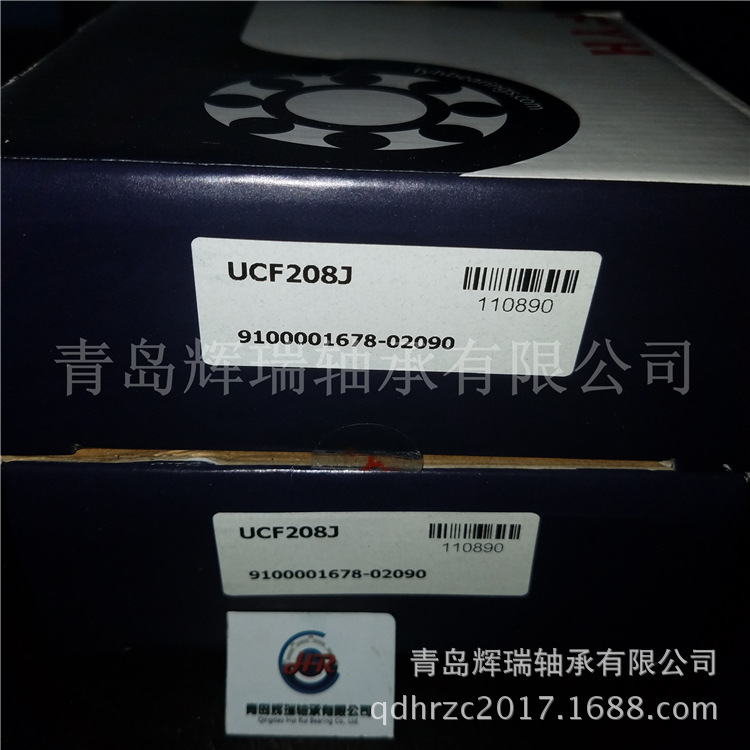

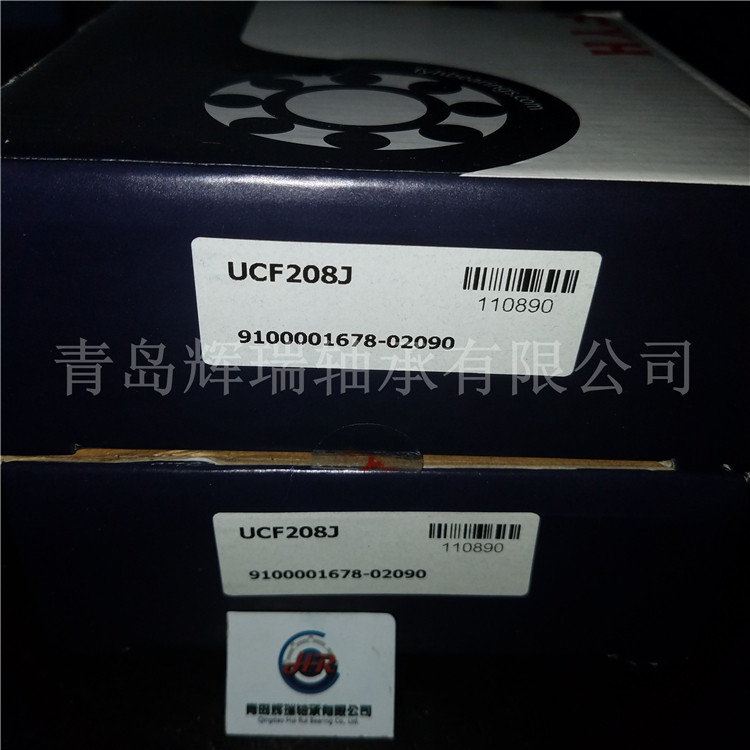

青岛辉瑞轴承有限公司供应小林精工FYH带座轴承UCF208J青岛辉瑞轴承有限公司供应小林精工FYH带座轴承UCF208J青岛辉瑞轴承有限公司供应小林精工FYH带座轴承UCF208J青岛辉瑞轴承有限公司供应小林精工FYH带座轴承UCF208J青岛辉瑞轴承有限公司供应小林精工FYH带座轴承UCF208J青岛辉瑞轴承有限公司供应小林精工FYH带座轴承UCF208J
|
Unit Number
|
Housing Number
|
Bearing Number
|
Shaft Size
|
L Dimension | J Dimension | Bolt Size |
Basic Load Ratings Cr Cor |
||
| UCFX06-19 | FX06 | UCX06-19 | 1-3/16 in | 117 mm 4-19/32 in | 92 mm 3-5/8 in | 14 mm 1/2 in |
25.7 kN 5777 lb |
15.4 kN 3462 lb |
|
| UCFX06-20 | FX06 | UCX06-20 | 1-1/4 in | 117 mm 4-19/32 in | 92 mm 3-5/8 in | 14 mm 1/2 in |
25.7 kN 5777 lb |
15.4 kN 3462 lb |
|
| UCF306 | F306 | UC306 | 30 mm | 125 mm 4-29/32 in | 95 mm 3-47/64 in | 14 mm 1/2 in |
26.7 kN 6002 lb |
15 kN 3372 lb |
|
| UCF207-20 | F207 | UC207-20 | 1-1/4 in | 117 mm 4-19/32 in | 92 mm 3-5/8 in | 12 mm 7/16 in |
25.7 kN 5777 lb |
15.4 kN 3462 lb |
|
| UCF207-21 | F207 | UC207-21 | 1-5/16 in | 117 mm 4-19/32 in | 92 mm 3-5/8 in | 12 mm 7/16 in |
25.7 kN 5777 lb |
15.4 kN 3462 lb |
|
| UCF207-22 | F207 | UC207-22 | 1-3/8 in | 117 mm 4-19/32 in | 92 mm 3-5/8 in | 12 mm 7/16 in |
25.7 kN 5777 lb |
15.4 kN 3462 lb |
|
| UCF207 | F207 | UC207 | 35 mm | 117 mm 4-19/32 in | 92 mm 3-5/8 in | 12 mm 7/16 in |
25.7 kN 5777 lb |
15.4 kN 3462 lb |
|
| UCF207-23 | F207 | UC207-23 | 1-7/16 in | 117 mm 4-19/32 in | 92 mm 3-5/8 in | 12 mm 7/16 in |
25.7 kN 5777 lb |
15.4 kN 3462 lb |
|
| UCFX07-22 | FX07 | UCX07-22 | 1-3/8 in | 130 mm 5-1/8 in | 102 mm 4-1/64 in | 14 mm 1/2 in |
29.1 kN 6541 lb |
17.8 kN 4001 lb |
|
| UCFX07 | FX07 | UCX07 | 35 mm | 130 mm 5-1/8 in | 102 mm 4-1/64 in | 14 mm 1/2 in |
29.1 kN 6541 lb |
17.8 kN 4001 lb |
|
| UCFX07-23 | FX07 | UCX07-23 | 1-7/16 in | 130 mm 5-1/8 in | 102 mm 4-1/64 in | 14 mm 1/2 in |
29.1 kN 6541 lb |
17.8 kN 4001 lb |
|
| UCF307 | F307 | UC307 | 35 mm | 135 mm 5-5/16 in | 100 mm 3-15/16 in | 16 mm 5/8 in |
33.4 kN 7508 lb |
19.3 kN 4338 lb |
|
| UCF208-24 | F208 | UC208-24 | 1-1/2 in | 130 mm 5-1/8 in | 102 mm 4-1/64 in | 14 mm 1/2 in |
29.1 kN 6541 lb |
17.8 kN 4001 lb |
|
| UCF208-25 | F208 | UC208-25 | 1-9/16 in | 130 mm 5-1/8 in | 102 mm 4-1/64 in | 14 mm 1/2 in |
29.1 kN 6541 lb |
17.8 kN 4001 lb |
|
| UCF208 | F208 | UC208 | 40 mm | 130 mm 5-1/8 in | 102 mm 4-1/64 in | 14 mm 1/2 in |
29.1 kN 6541 lb |
17.8 kN 4001 lb |
|
| UCFX08-24 | FX08 | UCX08-24 | 1-1/2 in | 137 mm 5-13/32 in | 105 mm 4-9/64 in | 16 mm 5/8 in |
34.1 kN 7666 lb |
21.3 kN 4788 lb |
|
| UCFX08 | FX08 | UCX08 | 40 mm | 137 mm 5-13/32 in | 105 mm 4-9/64 in | 16 mm 5/8 in |
34.1 kN 7666 lb |
21.3 kN 4788 lb |
|
| UCF308-24 | F308 | UC308-24 | 1-1/2 in | 150 mm 5-29/32 in | 112 mm 4-13/32 in | 16 mm 5/8 in |
40.7 kN 9149 lb |
24 kN 5395 lb |
|
| UCF308 | F308 | UC308 | 40 mm | 150 mm 5-29/32 in | 112 mm 4-13/32 in | 16 mm 5/8 in |
40.7 kN 9149 lb |
24 kN 5395 lb |
|
| UCF209-26 | F209 | UC209-26 | 1-5/8 in | 137 mm 5-13/32 in | 105 mm 4-9/64 in | 14 mm 1/2 in |
34.1 kN 7666 lb |
21.3 kN 4788 lb |
|
