| 형식 | 호칭내경 | 내경 | 외경 | 살두께 | |||
| (mm) | 공차 | (mm) | 공차 | (mm) | 공차 | ||
| K5T06 | 6 | 8 | 0.25/0 | 16 | 0/-0.25 | 1.5 | -0.03/-0.08 |
| K5T08 | 8 | 10 | 0.25/0 | 18 | 0/-0.25 | 1.5 | -0.03/-0.08 |
| K5T10 | 10 | 12 | 0.25/0 | 24 | 0/-0.25 | 1.5 | -0.03/-0.08 |
| K5T12 | 12 | 14 | 0.25/0 | 26 | 0/-0.25 | 1.5 | -0.03/-0.08 |
| K5T14 | 14 | 16 | 0.25/0 | 30 | 0/-0.25 | 1.5 | -0.03/-0.08 |
| K5T16 | 16 | 18 | 0.25/0 | 32 | 0/-0.25 | 1.5 | -0.03/-0.08 |
| K5T18 | 18 | 20 | 0.25/0 | 36 | 0/-0.25 | 1.5 | -0.03/-0.08 |
| K5T20 | 20 | 22 | 0.25/0 | 38 | 0/-0.25 | 1.5 | -0.03/-0.08 |
| K5T22 | 22 | 24 | 0.25/0 | 42 | 0/-0.25 | 1.5 | -0.03/-0.08 |
| K5T24 | 24 | 26 | 0.25/0 | 44 | 0/-0.25 | 1.5 | -0.03/-0.08 |
| K5T25 | 25 | 28 | 0.25/0 | 48 | 0/-0.25 | 1.5 | -0.03/-0.08 |
| K5T30 | 30 | 32 | 0.25/0 | 54 | 0/-0.25 | 1.5 | -0.03/-0.08 |
| K5T35 | 35 | 38 | 0.25/0 | 62 | 0/-0.25 | 1.5 | -0.03/-0.08 |

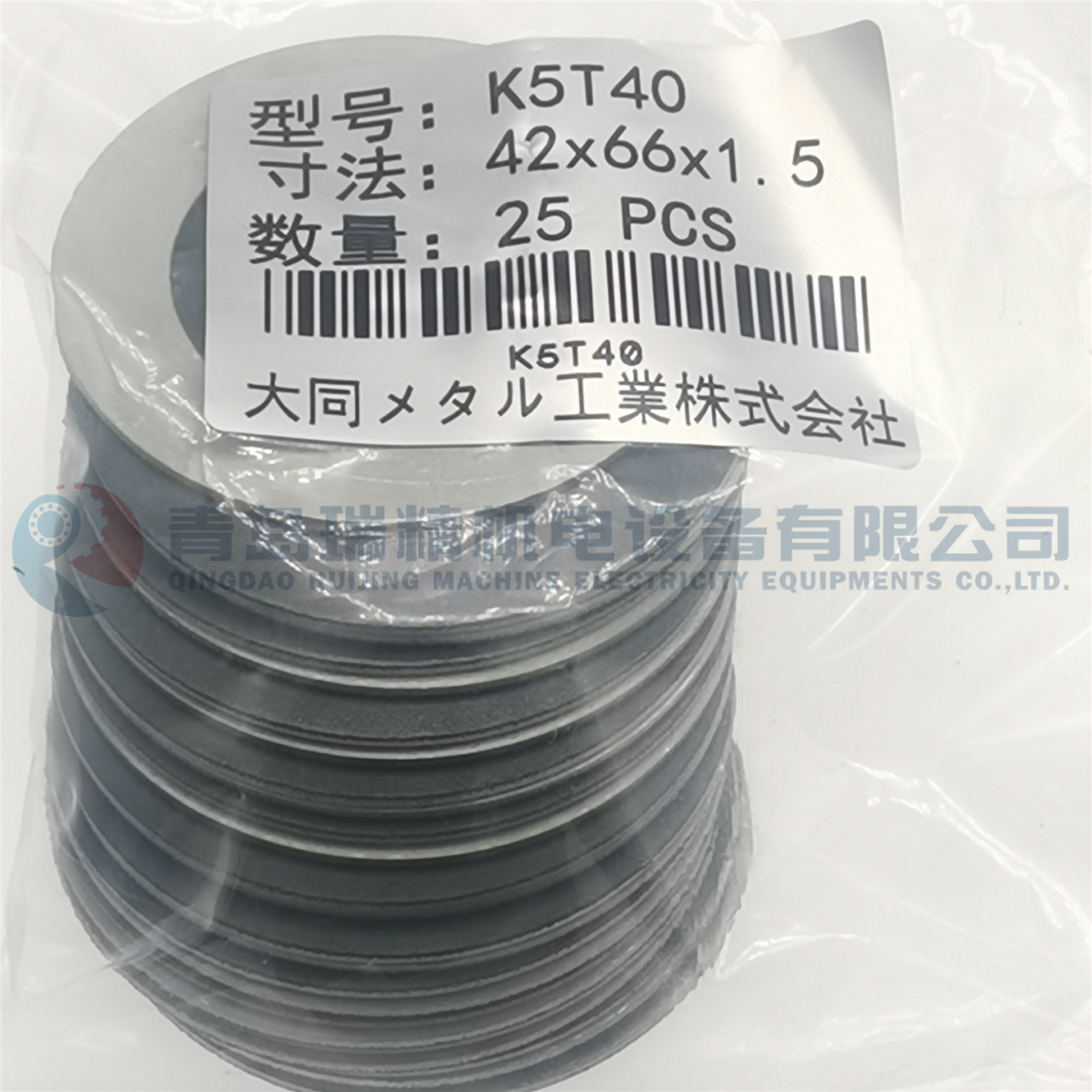

| K5T40 | 40 | 42 | 0.25/0 | 66 | 0/-0.25 | 1.5 | -0.03/-0.08 |
| K5T45 | 45 | 48 | 0.25/0 | 74 | 0/-0.25 | 2 | -0.03/-0.08 |
| K5T50 | 50 | 52 | 0.25/0 | 78 | 0/-0.25 | 2 | -0.03/-0.08 |
